SGMICRODatasheet (PDF)

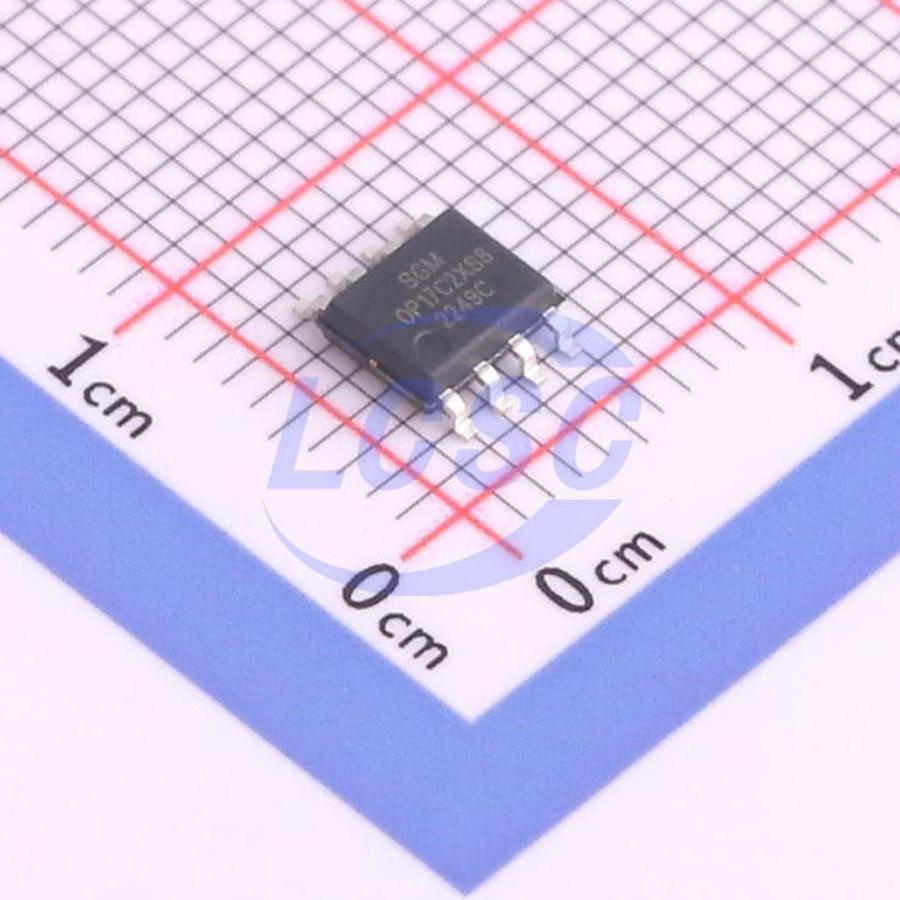

SGMOP17C-2XS8G/TR
50mA 2 25uV 1.3V/us 100pA 135dB 450uA 2.8MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
2.8MHz, High Voltage, High Precision, Low Noise Rail-to-Rail Output Operational Amplifier
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGMOP17C-2XS8G/TR
- Store part #
- C700118
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,692 in stock
#C700118
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.25 | ₹150.25 |
| 10+ | ₹119.90 | ₹1,199.00 |
| 30+ | ₹103.21 | ₹3,096.30 |
| 100+ | ₹84.34 | ₹8,434.00 |
1 × ₹150.25
₹150.25
excl. GST
₹177.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGMOP17C-2XS8G/TR
₹150.25 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 135dB
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 450uA
- Gain Bandwidth Product
- 2.8MHz
- Input Voltage Noise Density
- 20nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
The SGMOP17C-2 is a dual, low noise and high precision operational amplifier optimized for high voltage operation from 4.5V to 36V single supply. The device provides rail-to-rail output operation. The SGMOP17C-2 offers a low offset voltage less than 120μv and a low bias current. The combination of characteristics makes the SGMOP17C-2 a good choice for temperature measurements, pressure and position sensors, strain gauge amplifiers and medical instrumentation, or any other 4.5V to 36V applications requiring precision and long-term stability. The SGMOP17C-2 is available in a Green SOIC-8 package. It is rated over the -40°C to +125°C temperature range.
Applications
- Pressure Sensors
- Temperature Measurements
- Precision Current Sensing
- Electronic Scales
- Strain Gauge Amplifiers
- Handheld Test Equipment
- Thermocouple Amplifiers
- Medical Instrumentation
Key features
- Low Offset Voltage: 120μV (MAX)
- Open-Loop Voltage Gain: 150dB (TYP)
- PSRR: 150dB (TYP)
- CMRR: 135dB (TYP)
- 0.1Hz to 10Hz Noise: 0.4μVₚ₋ₚ Input Voltage Noise Density: 20nV/√Hz at 1kHz
- Gain-Bandwidth Product: 2.8MHz
- Overload Recovery Time: 3μs Rail-to-Rail Output Swing
- Supply Voltage Range: 4.5V to 36V
- Low Supply Current: 450μA/Amplifier (TYP)
- -40°C to +125°C Operating Temperature Range
- Available in a Green SOIC-8 Package
