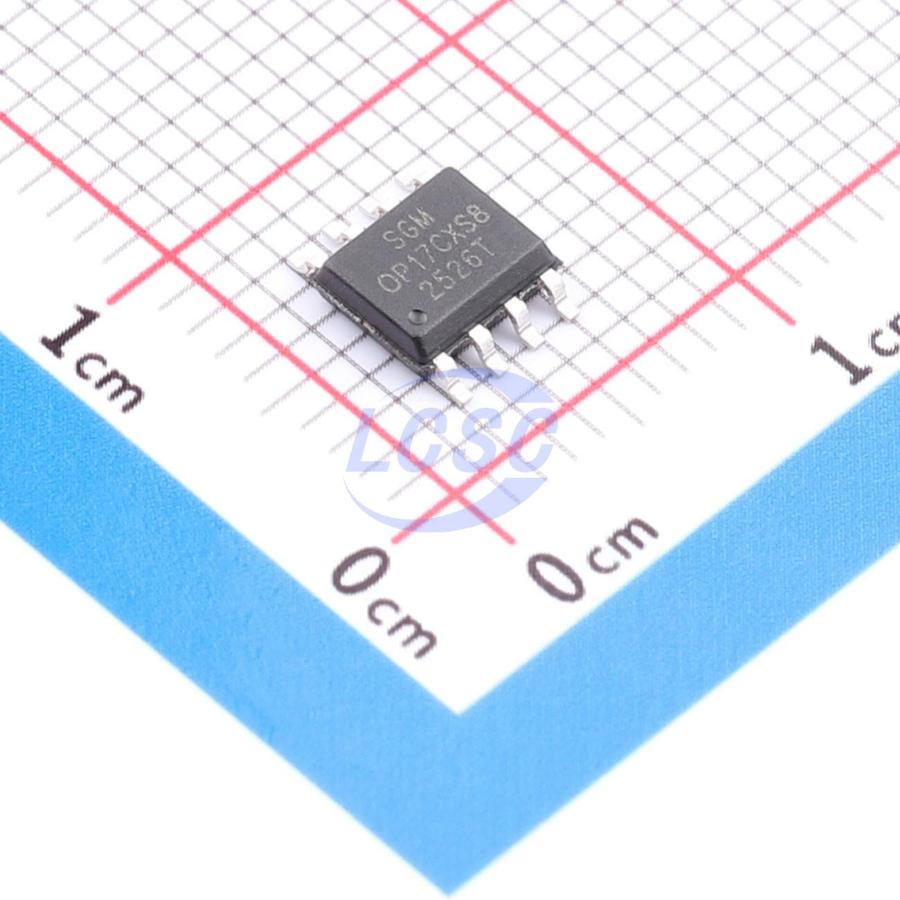

SGMICRO

SGMOP17CXS8G/TR

50mA 1 120uV 1.3V/us 100pA 135dB 450uA 2.8MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGMOP17CXS8G/TR
Store part #: C700120
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,183 in stock

#C700120

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹104.38	₹104.38
10+	₹80.19	₹801.90
30+	₹68.08	₹2,042.40
100+	₹56.20	₹5,620.00

Quantity (min 1)

1 × ₹104.38

₹104.38

excl. GST

₹123.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGMOP17CXS8G/TR

₹104.38 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 120uV
Slew Rate: 1.3V/us
Input Offset Current(Ios): 600pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 135dB
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 450uA
Gain Bandwidth Product: 2.8MHz
Input Voltage Noise Density: 20nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Dual Supply: -18V~-2.5V;2.5V~18V
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.299 g

Overview

The SGMOP17C is a single-channel, rail-to-rail output, low-noise, high-precision op-amp with low input offset voltage and bias current. Operating supply voltage is guaranteed from 4.5V to 36V single supply. Rail-to-rail output swing facilitates high-side and low-side sensing. These features make it an ideal choice for temperature, position, and pressure sensors, medical equipment, strain gauge amplifiers, or any other 4.5V to 36V application requiring high precision and long-term stability. The device is available in a green SOIC-8 package with an operating temperature range of -40°C to +125°C.

Applications

Temperature measurement
Pressure sensors
Precision current sensing
Electronic scales
Strain gauge amplifiers

Key features

Low offset voltage: 120μV (max)
Rail-to-rail output swing
4.5V to 36V single-supply operation
Voltage gain: 135dB (typ)
Power supply rejection ratio: 145dB (typ)
Common-mode rejection ratio: 125dB (typ)
0.1Hz to 10Hz noise: 1μVₚ₋ₚ
Input voltage noise density: 56nV/√Hz (at 1kHz)
Gain bandwidth product: 1.5MHz
Low supply current: 480μA (typ)
Overload recovery time: 3μs (typ)
-40°C to +125°C operating temperature range
Green SOIC-8 package
