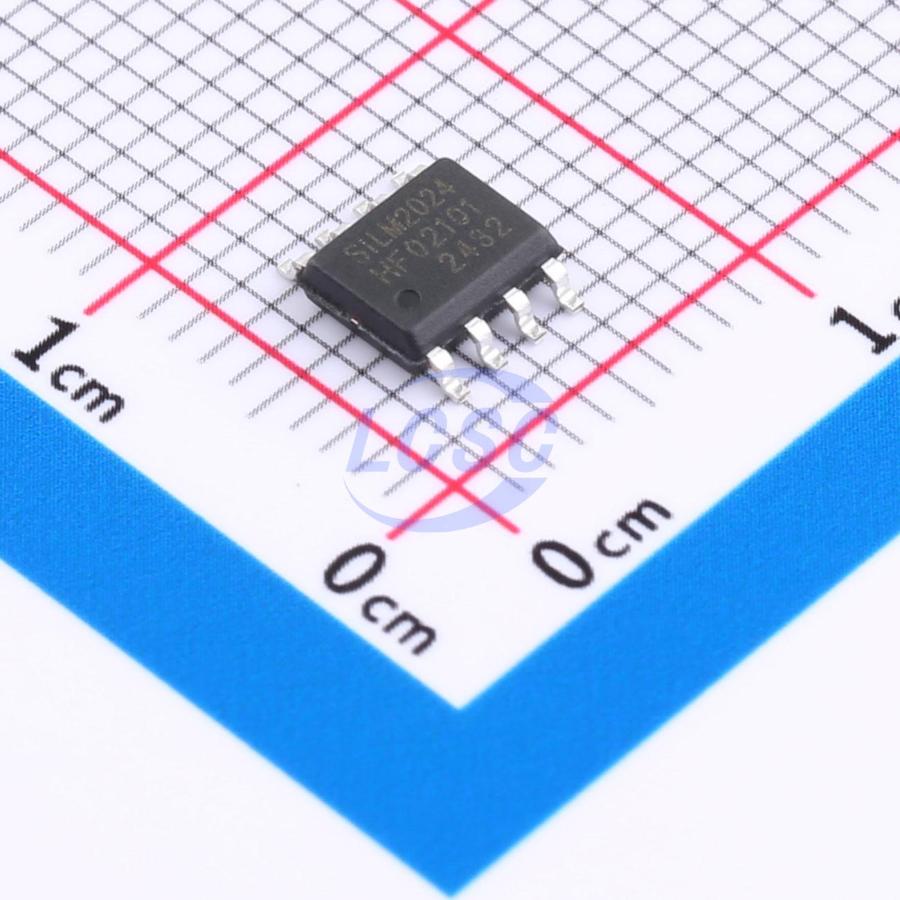

SiLM2024CA-DG
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
200V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SiLM2024CA-DG
- Store part #
- C48391671
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C48391671
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.08 | ₹165.40 |
| 50+ | ₹25.97 | ₹1,298.50 |
| 150+ | ₹22.93 | ₹3,439.50 |
| 500+ | ₹19.13 | ₹9,565.00 |
| 2,500+ | ₹17.44 | ₹43,600.00 |
| 5,000+ | ₹16.43 | ₹82,150.00 |
5 × ₹33.08
₹165.40
excl. GST
₹195.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SiLM2024CA-DG
₹165.40 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 250uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.104 g
Overview
SiLM2024 is a high-voltage, high-speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology enable a robust monolithic architecture. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize cross-conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations, with operating voltages up to 200V.
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +200V
- Tolerates negative transient voltage, immune to dV/dt noise
- Gate drive supply range 10V to 20V
- Under-voltage lockout
- Compatible with 3.3V, 5V, and 15V logic
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internally set dead time
- Shutdown input turns off both channels simultaneously
- RoHS compliant
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SLM2106BCA-13GTR#C883214Sillumin · SOIC-8 | Sillumin | SOIC-8 | 2,493 | ₹61.28 · 2,493 in stock | View |
 | SLM2186CA-DG#C2759831Sillumin · SOIC-8 | Sillumin | SOIC-8 | 32,668 | ₹79.68 · 32,668 in stock | View |
 | SLM2181CA-DG#C2986826Sillumin · SOIC-8 | Sillumin | SOIC-8 | On request | Price on request | Quote |
