SITDatasheet (PDF)

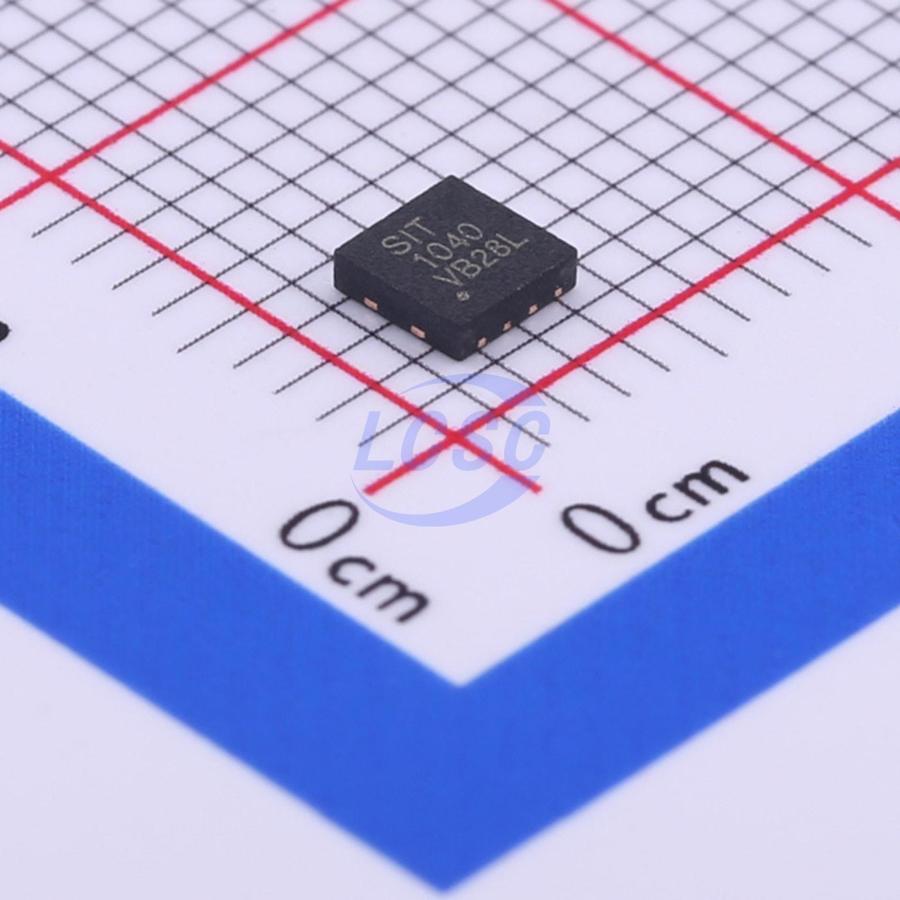

SIT1040TK
4.5V~5.5V CAN Transceiver 1Mbps TDFN-8-EP(3x3) Drivers, Receivers, Transceivers RoHS
TDFN-8-EP(3x3)ROHS CompliantActive
SIT1040 5V Supply, ±40V Interface Voltage Tolerance, 1Mbps High-speed CAN Transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1040TK
- Store part #
- C427445
- Package / case
- TDFN-8-EP(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,805 in stock
#C427445
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.75 | ₹103.75 |
| 10+ | ₹93.91 | ₹939.10 |
| 30+ | ₹88.57 | ₹2,657.10 |
| 100+ | ₹82.42 | ₹8,242.00 |
| 500+ | ₹79.76 | ₹39,880.00 |
| 1,000+ | ₹78.53 | ₹78,530.00 |
1 × ₹103.75
₹103.75
excl. GST
₹122.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIT1040TK
₹103.75 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;Short-Circuit Protection;Thermal shutdown protection;TXD dominant timeout;Enable
- Supply Current
- 70mA
- Quiescent Supply Current
- 12uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
The SIT1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high-speed applications, up to 1 MBaud, in in-vehicle, industry control and other fields. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Key features
- Fully compatible with the ISO 11898 standard
- Thermally protected
- Input levels compatible with 5.3V and 5V devices
- Transmit Data (TXD) dominant time-out function
- Very low-current standby mode with remote wake-up Capability via the bus: 5pA Typical
- Transceiver in unpowered state disengages from the bus (zero load)
- At least 110 nodes can be connected
- High speed (up to 1 MBaud)
- Very low Electro Magnetic Emission (EME)
- Provide DFN3*3-8, Small Outline, Leadless Package
- Provide Green and Environmentally Friendly Lead-free package
