SITDatasheet (PDF)

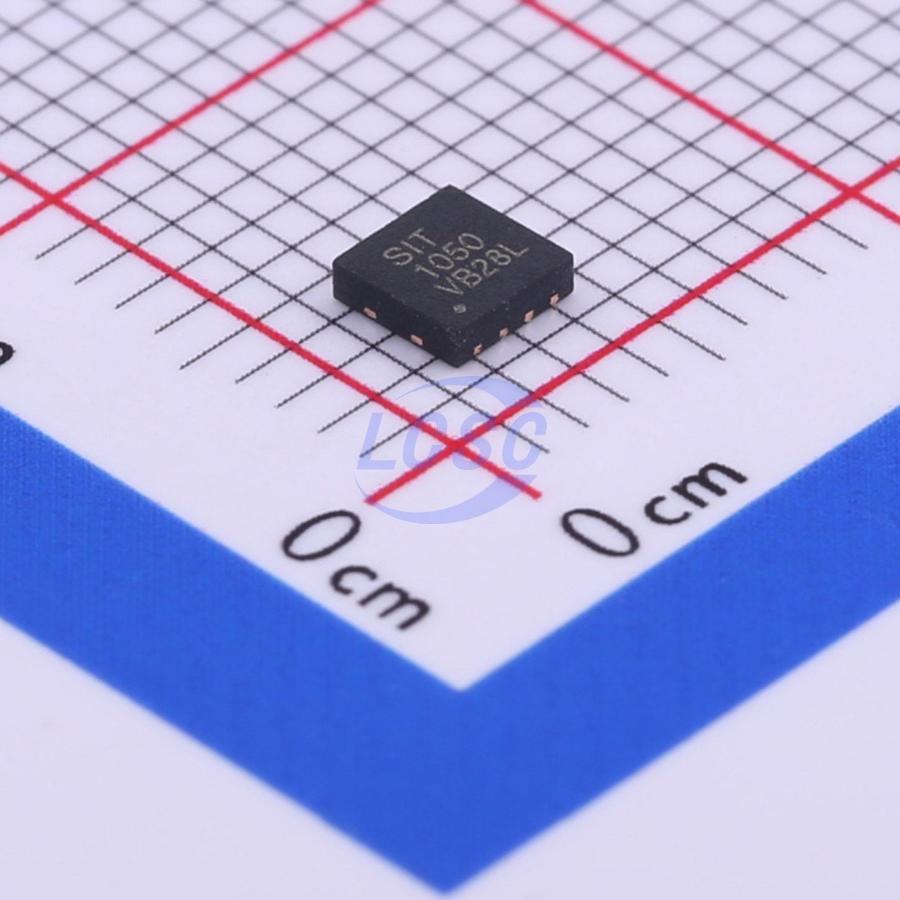

SIT1050TK
4.5V~5.5V CAN Transceiver 1Mbps TDFN-8-EP(3x3) Drivers, Receivers, Transceivers RoHS
TDFN-8-EP(3x3)ROHS CompliantActive
High-speed CAN bus transceiver
- Manufacturer
- SIT
- Manufacturer part #
- SIT1050TK
- Store part #
- C427444
- Package / case
- TDFN-8-EP(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,375 in stock
#C427444
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹63.37 | ₹316.85 |
| 50+ | ₹52.59 | ₹2,629.50 |
| 150+ | ₹47.85 | ₹7,177.50 |
| 500+ | ₹40.09 | ₹20,045.00 |
| 2,500+ | ₹37.51 | ₹93,775.00 |
| 5,000+ | ₹36.00 | ₹1,80,000.00 |
5 × ₹63.37
₹316.85
excl. GST
₹373.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIT1050TK
₹316.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Short-Circuit Protection;Thermal shutdown protection;TXD dominant timeout;Silent mode
- Supply Current
- 70mA
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The SIT1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high speed applications, up to 1 MBaud, in passenger cars. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Key features
- Fully compatible with the ISO 11898 standard
- Thermally protected
- Overcurrent protection function
- Transmit Data (TXD) dominant time- out function
- Silent mode in which the transmitter is disabled
- Transceiver in unpowered state disengages from the bus (zero load)
- At least 110 nodes can be connected
- High speed (up to 1 MBaud)
- Very low Electro Magnetic Emission (EME)
- Available in leadless HVSON8 / DFN3*3 - 8 package (3.0 mm x 3.0 mm), with small shape
