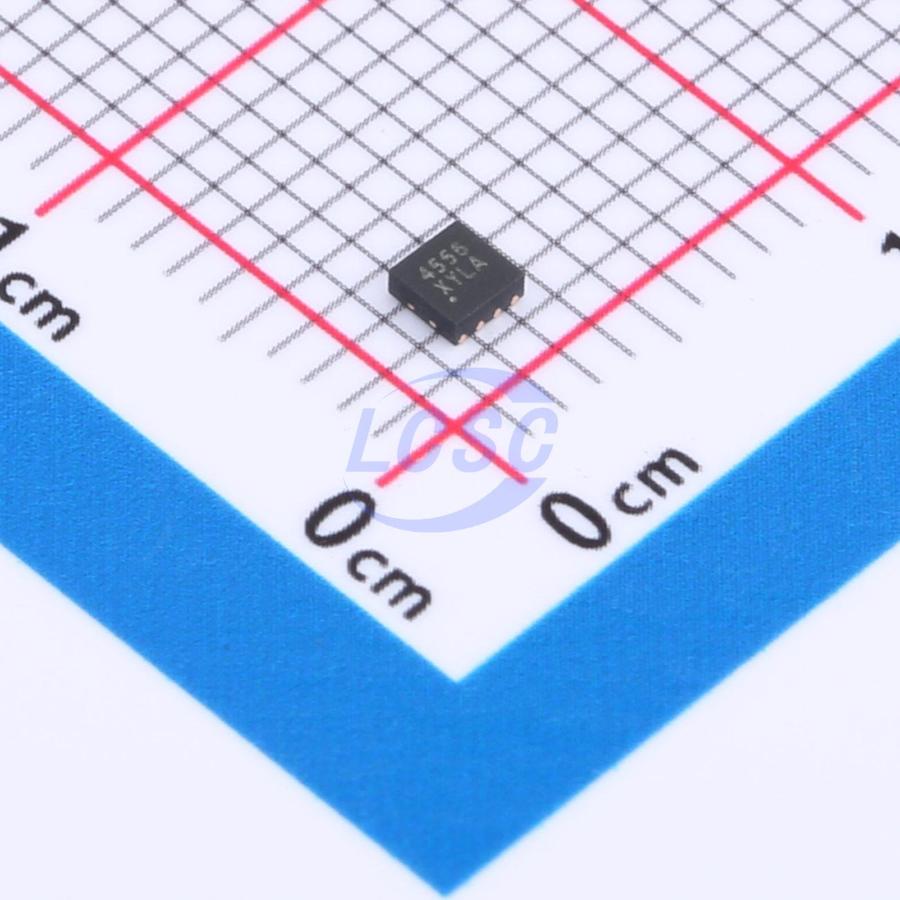

SK4556D8-42
Lithium Battery 1A DFN-8L(2x2) Battery Management
Single Li-ion Battery Linear Charger
- Manufacturer
- Suntek
- Manufacturer part #
- SK4556D8-42
- Store part #
- C21713716
- Package / case
- DFN-8L(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C21713716
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.39 | ₹126.95 |
| 50+ | ₹22.17 | ₹1,108.50 |
| 150+ | ₹20.79 | ₹3,118.50 |
| 500+ | ₹19.07 | ₹9,535.00 |
| 2,500+ | ₹18.30 | ₹45,750.00 |
| 4,000+ | ₹17.84 | ₹71,360.00 |
5 × ₹25.39
₹126.95
excl. GST
₹149.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SK4556D8-42
₹126.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.75V~28V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The SK4556 is a complete constant-current/ constant voltage linear charger for single Lithium-Ion battery with high input voltage rating and large current. The largest input voltage is up to 28V and charge current is up to 1A. The input over voltage protection thread is 6.8V and the lowest input voltage is 3.75V, which can meet the requirement of voltage-adjustment to reduce charging power consumption and improve overall efficiency. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V/4.35V/4.4V/4.45V, and the charge current can be programmed externally with a single resistor. The SK4556 automatically terminates the charge cycle when the charge current drops to 1/10 the programmed value after the final float voltage is reached. When the input voltage (supplied by AC adapter or USB power supply) is removed, the SK4556 automatically enters a low current state, decreasing the battery leakage current to less than 1μA. Other features of SK4556 include over temperature protection, under voltage lockout, automatic recharge and charging state indication (two LED pins to show charge state and charge-ending state).
Applications
- Standby power supply/ portable power source
- mobile phone,PDA,GPS
- MP3,MP4 player
- Digital camera, electronic dictionary
- Portable devices,Various charg
Key features
- Maximum Input Voltage Rating up to 28V
- Minimum Input Voltage: 3.75V (Typ.)
- Programmable Charge Current up to 1A
- Input Over Voltage Protection : 6.8V (Typ.)
- Float Charge Voltage : 4.2V / 4.35V/ 4.4V /4.45V
- Maximum BAT withstand voltage up to 20V
- 1% Charge Voltage Accuracy
- Battery reverse connection protection
- Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- 1/10C Termination Charge Current
- Charging status and fault status indication
- Battery Temperature Monitoring
- Chip Enable Input
- Trickle charge threshold: 2.9V (Float Voltage: 4.2V,Typ.)
- Soft-start and surge current limit
- Available ESOP8, DFN2x2-8L, DFN3x3-8L, DFN3x2-10L, DFN3x3-10L Packages
