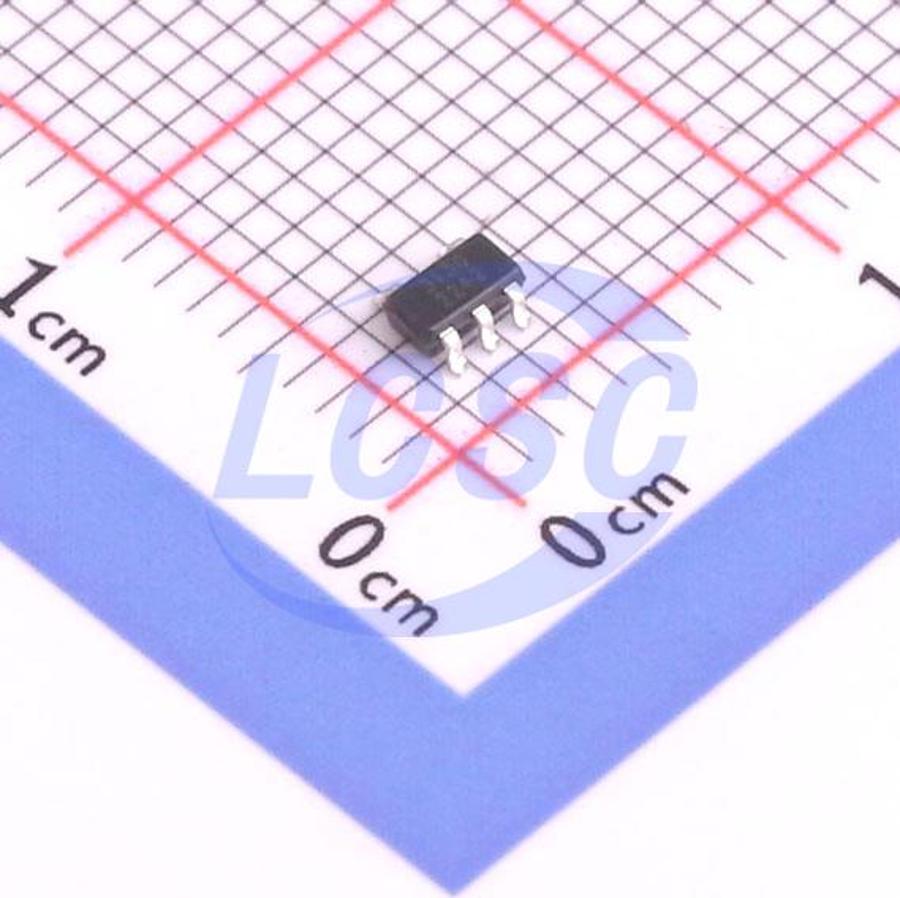

SKCL3130ME
Lithium Battery 12A SOT-23-5 Battery Management RoHS
Lithium/polymer battery protection solution
- Manufacturer
- Shikues
- Manufacturer part #
- SKCL3130ME
- Store part #
- C2941741
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,105 in stock
#C2941741
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.36 | ₹76.80 |
| 50+ | ₹12.21 | ₹610.50 |
| 150+ | ₹10.62 | ₹1,593.00 |
| 500+ | ₹9.45 | ₹4,725.00 |
| 3,000+ | ₹8.49 | ₹25,470.00 |
| 6,000+ | ₹8.02 | ₹48,120.00 |
5 × ₹15.36
₹76.80
excl. GST
₹90.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SKCL3130ME
₹76.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- -300mV~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 12A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SKCL3130ME series is a highly integrated protection solution for lithium-ion/polymer batteries. The device integrates advanced power MOSFETs, high-precision voltage detection circuitry, and delay circuits. Housed in an ultra-compact SOT23-5 package requiring only a single external component, it is ideal for space-constrained battery pack designs. It provides all protection functions required for battery applications, including overcharge, overdischarge, overcurrent, and load short-circuit protection. Accurate overcharge detection voltage ensures safe charging while maximizing battery capacity utilization. Low standby current draws minimal power from the battery during storage. The device is suitable not only for digital cellular phones, but also for any other lithium-ion and lithium-polymer battery-powered information devices requiring extended battery life.
Applications
- Single-cell Li-ion battery pack
- Li-polymer battery pack
Key features
- Integrated advanced power MOSFET with typical on-resistance of 65 mΩ
- Ultra-compact SOT23-5 package
- Over-temperature protection
- Overcharge current protection
- Two-level overcurrent detection: overdischarge current and load short-circuit
- Charger detection function
- 0V battery charging function
- Internal delay generation
- High-accuracy voltage detection
- Low current consumption: typical 2.8 μA in active mode; typical 1.5 μA in power-down mode
- RoHS compliant and lead-free
- Halogen-free product
