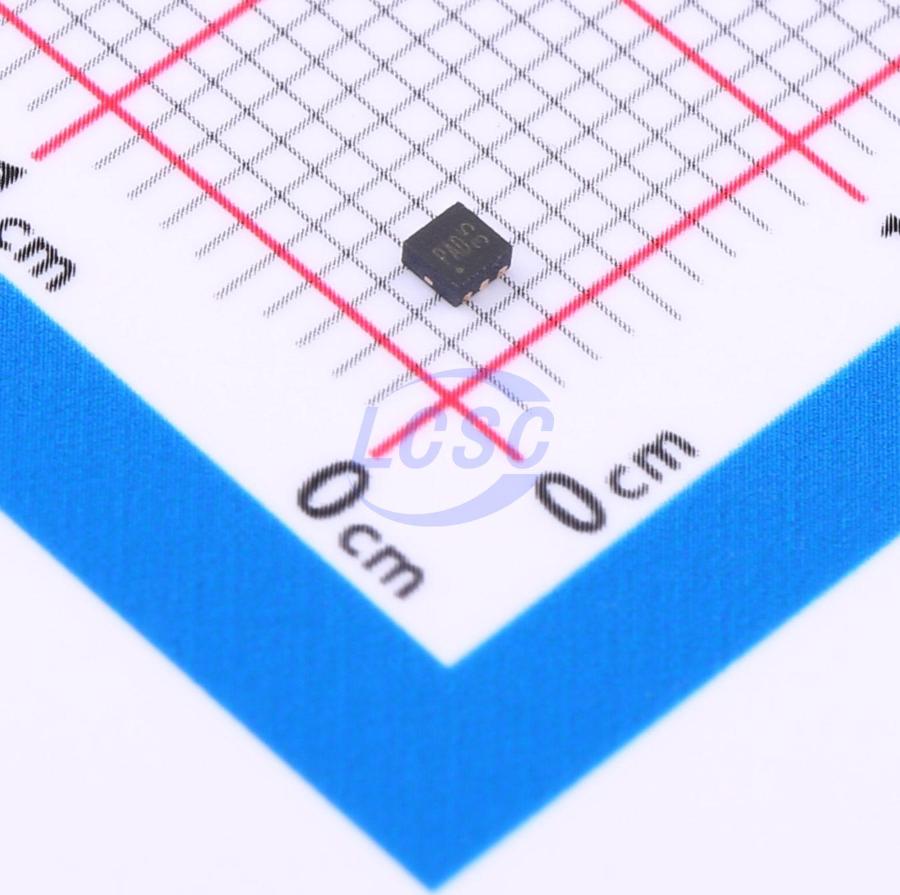

SKPI3860MD
Battery Protection IC Lithium-ion/Polymer DFN-6(1.6x1.6)
Low Power Consumption, High Precision, High ESD 1-Cell Li-ion and Li-Polymer Battery Voltage and Current Protection IC
- Manufacturer
- Shikues
- Manufacturer part #
- SKPI3860MD
- Store part #
- C5371914
- Package / case
- DFN-6(1.6x1.6)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,850 in stock
#C5371914
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.03 | ₹150.15 |
| 50+ | ₹26.22 | ₹1,311.00 |
| 150+ | ₹24.59 | ₹3,688.50 |
| 500+ | ₹22.56 | ₹11,280.00 |
| 2,500+ | ₹21.66 | ₹54,150.00 |
| 4,000+ | ₹21.12 | ₹84,480.00 |
5 × ₹30.03
₹150.15
excl. GST
₹177.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SKPI3860MD
₹150.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Quiescent Current
- 2.5uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- -300mV~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
- Battery protection ICs are featured for accurately monitoring Li-ion or Li-Polymer battery voltage and current when charging and discharging the batteries. When over charge, over discharge and short circuit conditions happened, the battery protection IC will control the charging or discharging output pins to control charge or discharge MOSFETs to cut off the charging or discharging path accordingly to protect the batteries from being damaged. - Battery protection ICs monitor the charge/discharge/short circuit current by external current sensing resistor, to provide very precise current sensing control. - Battery protection IC embeds with high ESD protection circuit to prevent from ESD issues in mass production and in use. - Battery protection IC power consumption when normal operation is low. For power saving, the battery protection IC provides 2 power saving modes: Standby mode and Power Down mode.
Applications
- Smart Phones
- Tablet PCs
- Handheld Data Terminals
- Portable Devices
Key features
- Voltage detection and release: Overcharge Detection Voltage, Overcharge Release Voltage, Overdischarge Detection Voltage, Overdischarge Release Voltage
- Current detection and release: Discharge Overcurrent Detection Voltage, Charge Overcurrent Detection Voltage, Load Short - Circuit Detection Voltage
- 0V Battery Charge Inhibition Battery Voltage
- Normal Mode 2.5uA (Typ.) 4.0uA (Max.), Standby Mode 1.0uA (Typ.) 1.5uA (Max.), Power Down Mode 0.1uA (Max.)
- Operation Temperature Range: Ta = - 40°C to +85°C
