SlkorDatasheet (PDF)

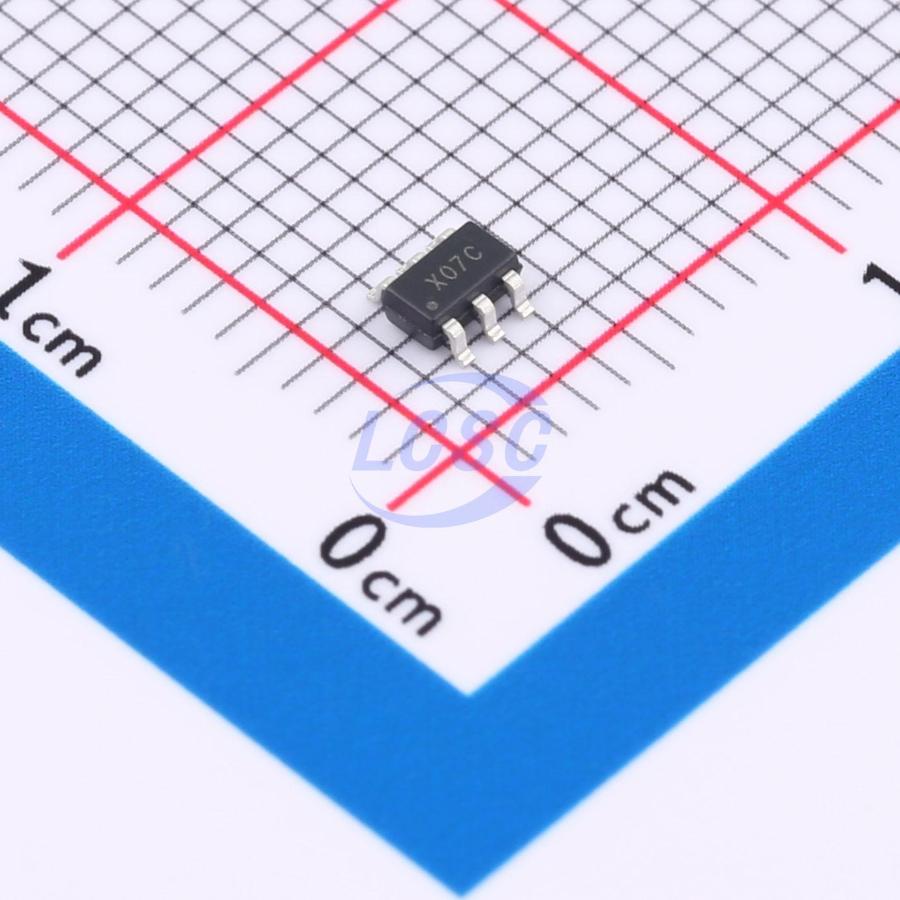

SL121S021
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
12-bit high-resolution, ultra-low-power analog-to-digital converter (ADC) with an operating voltage of 3.3V - 5.25V and a sampling rate of 50 - 200 ksps
- Manufacturer
- Slkor
- Manufacturer part #
- SL121S021
- Store part #
- C33962577
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,368 in stock
#C33962577
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.16 | ₹137.16 |
| 10+ | ₹124.16 | ₹1,241.60 |
| 30+ | ₹117.01 | ₹3,510.30 |
| 100+ | ₹108.99 | ₹10,899.00 |
| 500+ | ₹105.31 | ₹52,655.00 |
| 1,000+ | ₹103.79 | ₹1,03,790.00 |
1 × ₹137.16
₹137.16
excl. GST
₹161.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL121S021
₹137.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Resolution(Bits)
- 50kHz;12
- S/N Ratio
- 72.5dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
SL121S021 is a 12-bit ADC chip featuring high resolution, ultra-low power consumption, compact size, and single-ended input. Its performance parameters cover a wide sampling range of 50KSPS to 200KSPS, not just at a single specific sampling rate. The converter is based on a successive approximation register architecture with an internal sample-and-hold circuit. It operates from a 3.3V to 5.25V single supply with a power-down mode. Available in a 6-pin SOT-23 package with an operating temperature range of -40°C to 85°C. It is pin-to-pin compatible with the ADC121S021, while consuming less than 1/4 of its dynamic power at high voltage, significantly extending battery life.
Applications
- Portable systems
- Remote data acquisition
- Instrumentation and control systems
- Optical sensors
- Battery-powered systems
Key features
- Sampling rate: 50 – 200 KSPS
- 12-bit resolution
- Supply voltage range: 3.3V to 5.25V
- Ultra-low power consumption (typical) 2.35mW (5V, 200 KSPS) 1.20mW (3.3V, 200 KSPS)
- Max error ±1LSB INL, ±1LSB DNL
- 0—VA unipolar single-channel input
- SPI, QSPI, MICROWIRE, DSP serial interface
- 6-pin SOT-23 package
