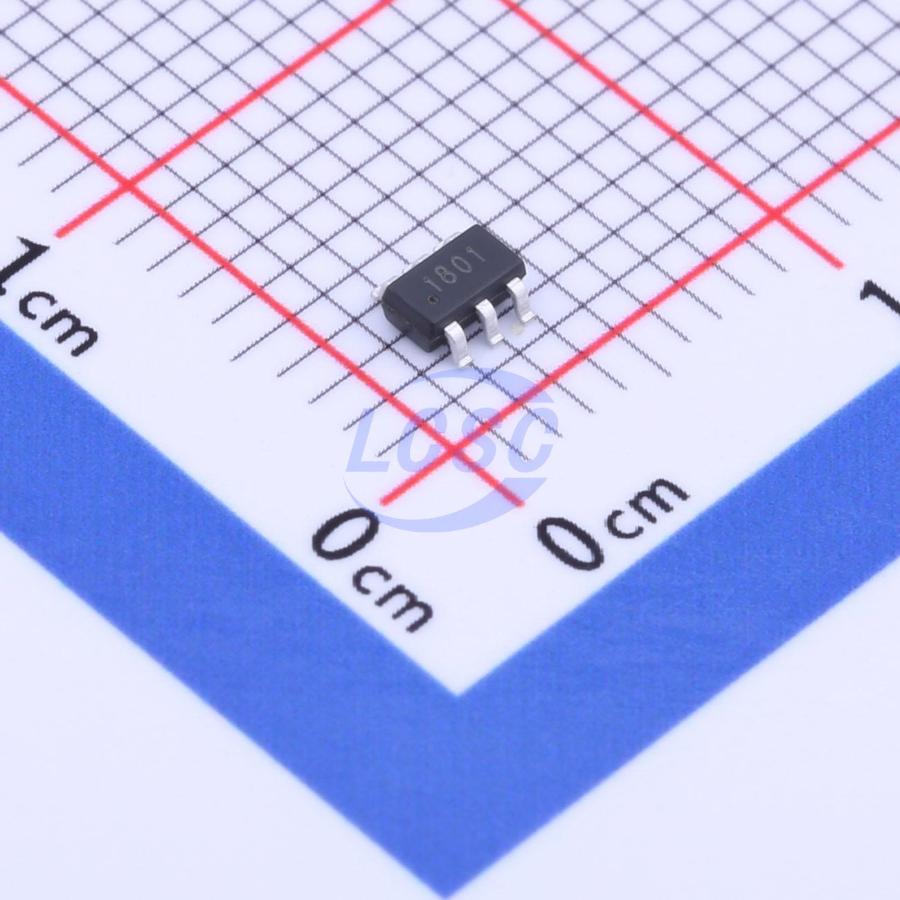

SL27511
Low Side Gate Driver IC MOSFET IGBT SOT-23-6
Single-channel driver, sourcing current, sinking current, high-speed low-side gate drive
- Manufacturer
- Slkor
- Manufacturer part #
- SL27511
- Store part #
- C2681373
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,250 in stock
#C2681373
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.07 | ₹59.07 |
| 10+ | ₹47.13 | ₹471.30 |
| 30+ | ₹41.91 | ₹1,257.30 |
| 100+ | ₹35.40 | ₹3,540.00 |
| 500+ | ₹32.36 | ₹16,180.00 |
| 1,000+ | ₹30.63 | ₹30,630.00 |
1 × ₹59.07
₹59.07
excl. GST
₹69.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL27511
₹59.07 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.2V
- Low Level Delay Time
- 16ns
- High Level Delay Time
- 16ns
- Quiescent Current
- 145uA
- Input Logic Level - High
- 2V~2.4V
- Voltage - Supply
- 4.5V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 8A
- Rise Time
- 6ns
- Fall Time
- 4.5ns
- Features
- Enable shutdown;Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
Single-channel high-speed low-side gate driver with 4A peak source current and 8A peak sink current, capable of efficiently and safely driving MOSFETs, IGBTs, and emerging wide-bandgap power devices. Low propagation delay and compact SOT-23 package enable MOSFET switching frequencies up to several hundred kHz. This device is ideally suited for synchronous rectification driving in server and telecom power supplies, where the dead time of the synchronous MOSFET directly impacts converter efficiency. Wide VDD supply voltage range of 4.5V to 20V enables effective driving of MOSFETs or GaN power devices. Integrated UVLO protection ensures the output remains low under abnormal conditions. Independent input pin voltage range of -5V to 24V ensures stable operation in the presence of overshoot caused by parasitic inductance. The input pin voltage threshold is also compatible with TTL-level inputs.
Applications
- Switching power supplies
- Motor control
- AC/DC and DC/DC converters
- Rectifiers for servers and communication equipment
- EV/HEV inverters and DC/DC converters
- PV boost and inverters
- UPS
- Gate drivers for emerging wide-bandgap power devices
Key features
- 6-pin SOT-23 package
- 4A peak source current and 8A peak sink current
- Wide VDD supply range up to 24V
- VDD UVLO, recommended operating voltage 4.5V to 20V
- Dual-input design, configurable as either non-inverting or inverting input; unused input pin can be used as enable/disable control
- Negative voltage input down to -5V
- TTL and CMOS input level compatible
- Low propagation delay (typical < 20ns)
- Output low when input floating
- Split output, independently adjustable turn-on and turn-off speed
- Operating temperature range: -40°C to 125°C
