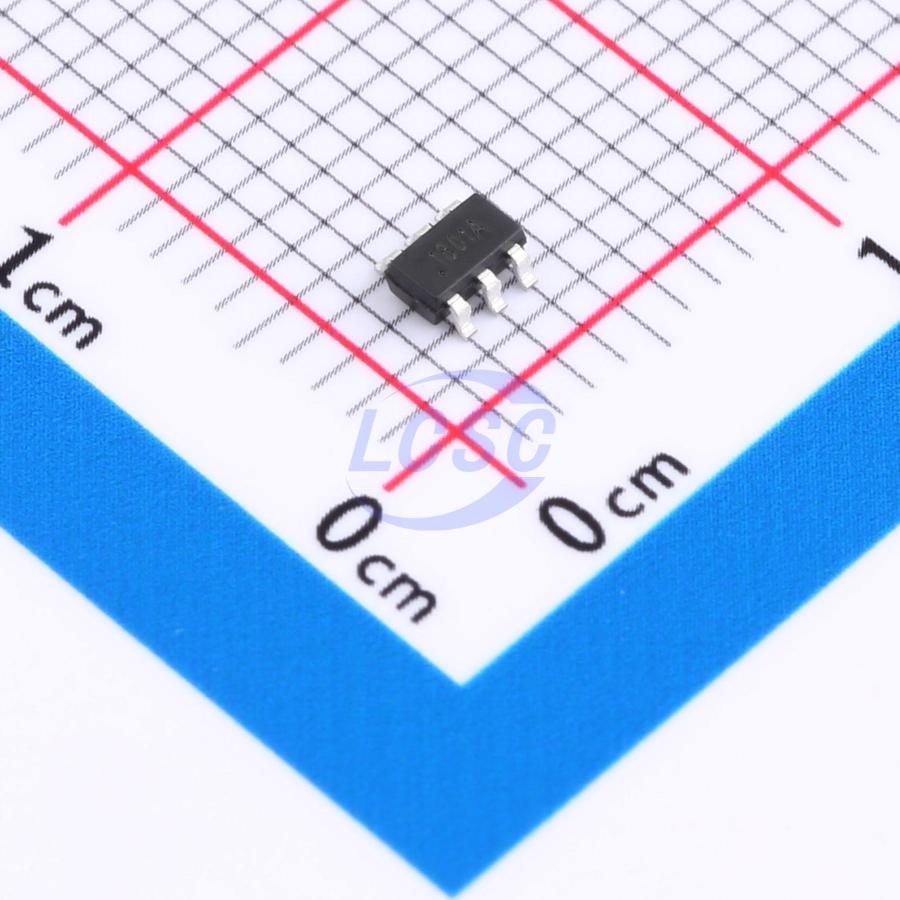

SL27511A
Low Side Gate Driver IC MOSFET IGBT SOT-23-6L
24V 4A Peak Source and 8A Peak Sink Single Channel Driver
- Manufacturer
- Slkor
- Manufacturer part #
- SL27511A
- Store part #
- C46061828
- Package / case
- SOT-23-6L
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,465 in stock
#C46061828
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.65 | ₹238.25 |
| 50+ | ₹37.24 | ₹1,862.00 |
| 150+ | ₹32.78 | ₹4,917.00 |
| 500+ | ₹27.21 | ₹13,605.00 |
| 3,000+ | ₹23.50 | ₹70,500.00 |
| 6,000+ | ₹22.00 | ₹1,32,000.00 |
5 × ₹47.65
₹238.25
excl. GST
₹281.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL27511A
₹238.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.2V
- Low Level Delay Time
- 17ns
- High Level Delay Time
- 17ns
- Quiescent Current
- 190uA
- Input Logic Level - High
- 1.9V~2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 8A
- Rise Time
- 14ns
- Fall Time
- 8ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
This device is a single-channel, high-speed, low-side gate driver with 4A peak source current and 8A peak sink current capability, capable of effectively and safely driving MOSFETs, IGBTs, and emerging wide-bandgap power switches. Low propagation delay and a compact SOT-23 package support fast switching at hundreds of kHz. It is well suited for synchronous rectification driving in server and telecom power supplies, where the dead-time accuracy of the synchronous MOSFET directly affects converter efficiency. A wide VDD operating range of 4.5V to 20V enables effective driving of MOSFETs or GaN power switches. Integrated UVLO protection ensures the output remains low under abnormal conditions. An independent input range of -5V to 24V ensures robust operation under undershoot or overshoot conditions caused by parasitic inductance. The input threshold is TTL-compatible.
Applications
- Power tools
- Motor control
- AC/DC and DC/DC converters
- Server and telecom rectifiers
- Photovoltaic boost converters and inverters
Key features
- 6-pin SOT-23 package
- 4A peak source and 8A peak sink current drive capability
- Wide VDD operating range: 4.5V to 20V with UVLO protection
- Dual inputs supporting non-inverting or inverting configuration; unused input can be used as enable/disable control
- Capable of handling negative voltage (-5V) inputs
- TTL and CMOS input compatible
- Low propagation delay (typical <20ns)
- Output remains low when input is floating
- Split outputs for independent turn-on and turn-off speed adjustment
- Operating temperature range: -40°C to 125°C
