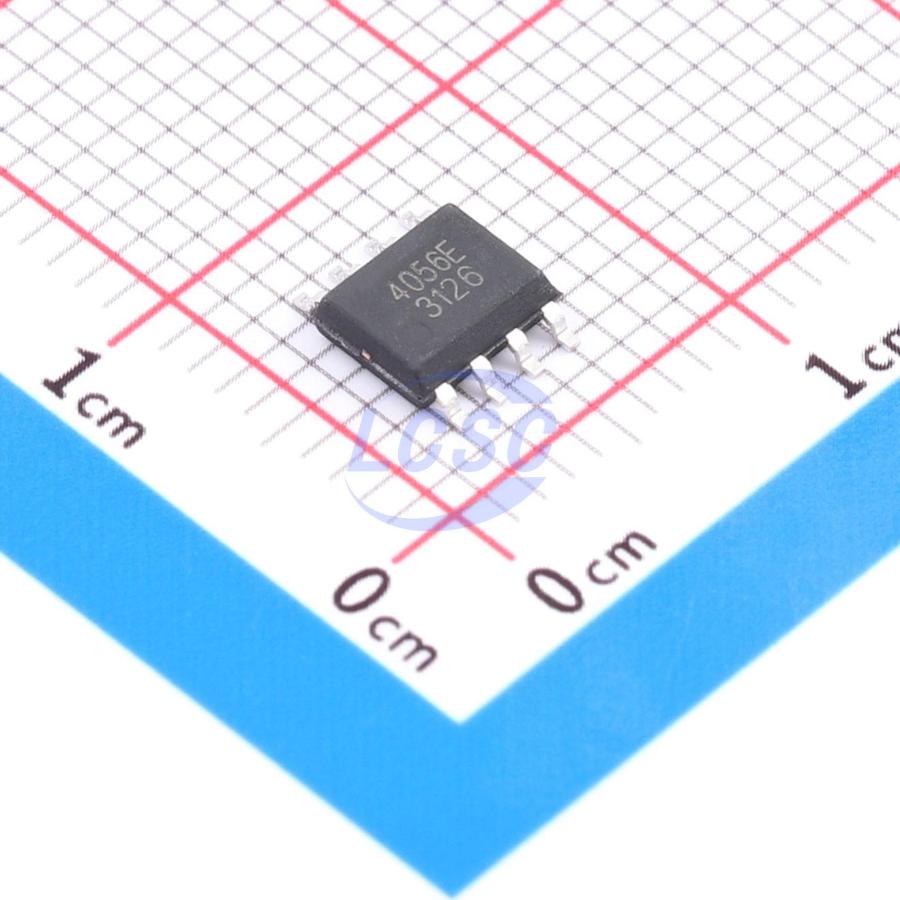

SL4056E
Battery Charging IC Lithium Battery ESOP-8
1000mA single-cell lithium battery charger IC
- Manufacturer
- Slkor
- Manufacturer part #
- SL4056E
- Store part #
- C42380664
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C42380664
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.15 | ₹103.00 |
| 200+ | ₹4.01 | ₹802.00 |
| 600+ | ₹3.39 | ₹2,034.00 |
| 4,000+ | ₹2.87 | ₹11,480.00 |
| 8,000+ | ₹2.55 | ₹20,400.00 |
| 20,000+ | ₹2.37 | ₹47,400.00 |
20 × ₹5.15
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL4056E
₹103.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.265 g
Overview
SL4056E is a single-cell lithium-ion battery constant-current/constant-voltage linear charger with a simple external application circuit, suitable for portable devices. It operates with both USB power and adapter power supplies. An internal reverse-discharge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit the chip temperature. The charge termination voltage is 4.2V, and the charge current is programmable via an external resistor. Charging terminates automatically when the charge current drops to 1/10 of the set value. When the input voltage is removed, the device automatically enters a low-current standby state, with standby current reduced to 1μA.
Applications
- Charging dock
- Bluetooth earphones
- Mobile phone
- Digital camera
- Portable speaker
Key features
- Pre-charge voltage: 4.2V
- Battery reverse polarity protection
- Maximum charge current: 1000mA
- Ultra-low quiescent current of 1uA in battery-only mode
- No external MOSFET, sense resistor, or blocking diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- C/10 charge termination
- 2.94V trickle charge threshold
- Package: ESOP8
