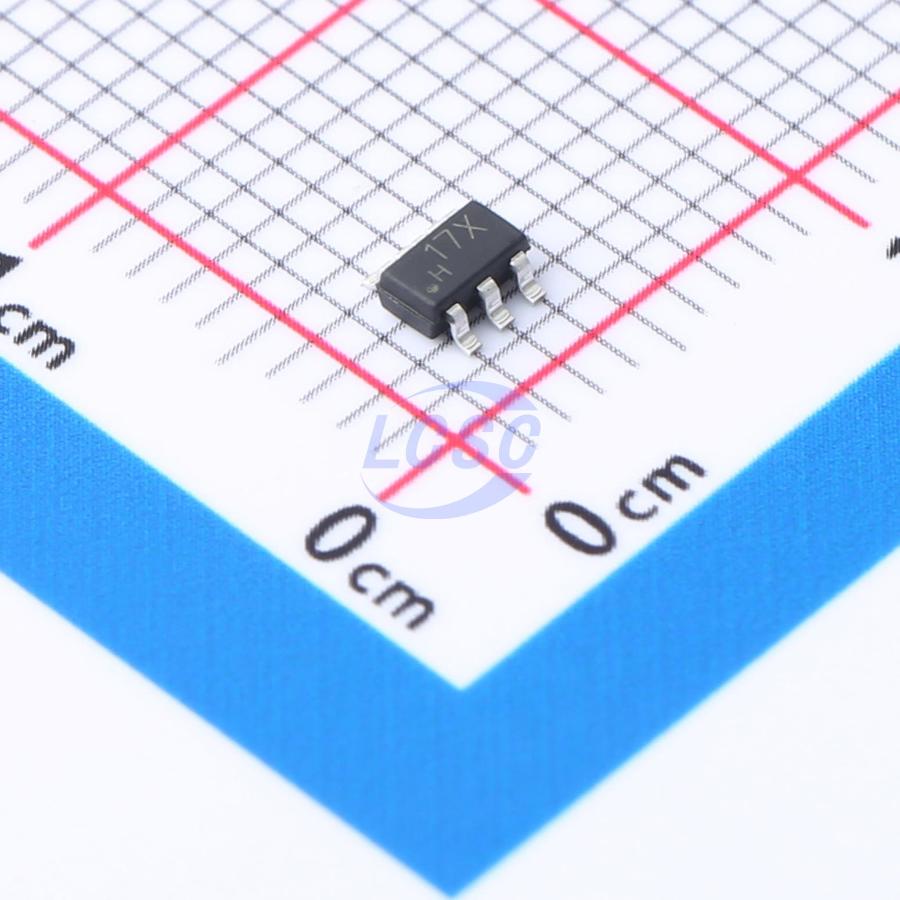

SL4057
Battery Charging IC Lithium-ion/Polymer SOT-23-6
500mA linear lithium-ion battery charger
- Manufacturer
- Slkor
- Manufacturer part #
- SL4057
- Store part #
- C2980830
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C2980830
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.28 | ₹62.80 |
| 100+ | ₹5.03 | ₹503.00 |
| 300+ | ₹4.39 | ₹1,317.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
10 × ₹6.28
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL4057
₹62.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- Operating Voltage
- 4V~6.5V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
SL4057 is a high-performance single-cell lithium-ion battery constant-current/constant-voltage linear charger. The SOT23-6 package combined with minimal external components makes it ideal for portable products and suitable for powering USB and adapter power supplies. Based on a specialized internal MOSFET architecture and anti-reverse charging circuitry, no external sense resistors or isolation diodes are required. When the ambient temperature is too high or in high-power applications, thermal feedback regulates the charging current to reduce the chip temperature. The charge voltage is fixed at 4.24V, while the charge current can be set externally via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the chip terminates the charge cycle. Additional features include: undervoltage lockout, automatic recharge, and two status pins to indicate charging and charge termination.
Applications
- Mobile phones, PDAs
- MP3, MP4 players
- Chargers
- Digital cameras
- Electronic dictionaries
- Bluetooth, GPS navigation devices
- Portable devices
Key features
- Programmable charge current up to 500mA
- No external MOSFET, sense resistor, or isolation diode required
- Complete linear charger for single-cell Li-Ion batteries in SOT23-6 package
- Constant current/constant voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- 4.24V precharge voltage with ±1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs with battery absence and fault status indication
- C/10 charge termination
- 25uA quiescent current in standby mode
- 2.9V trickle charging
- Soft-start to limit inrush current
- Reverse battery protection
- Battery undervoltage protection to activate charging
