Slkor

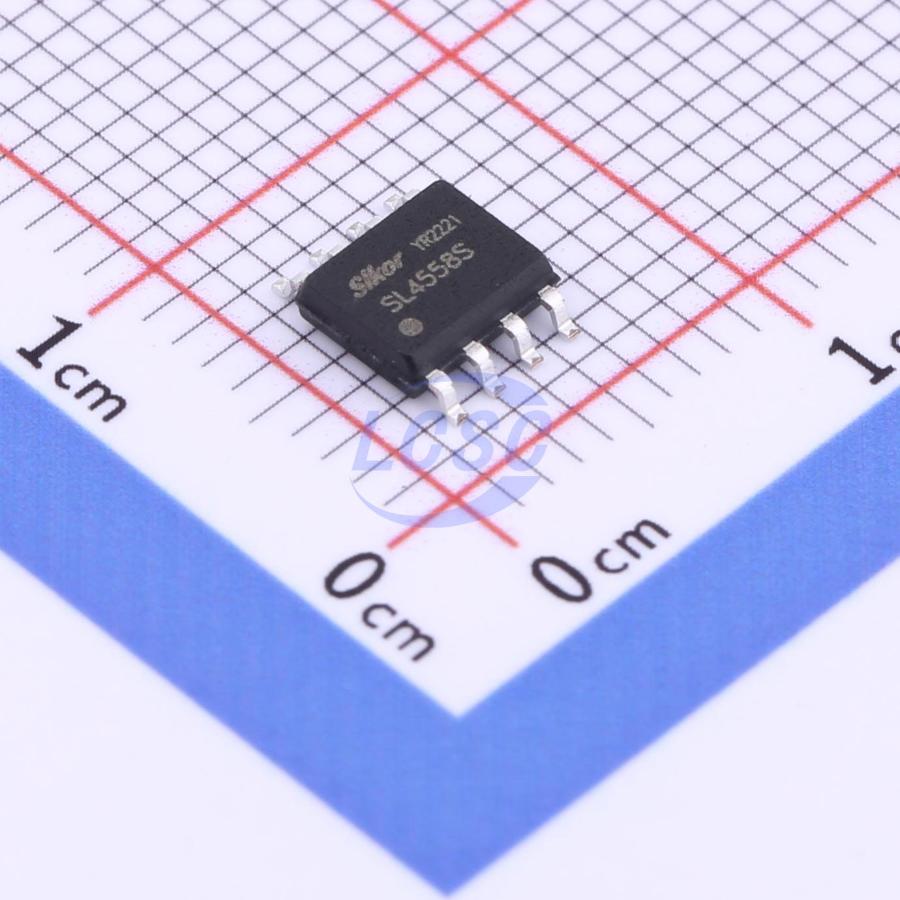

SL4558S

2 2mV 1.2V/us 30nA 90dB SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

DUAL OPERATIONAL AMPLIFIER

Manufacturer: Slkor
Manufacturer part #: SL4558S
Store part #: C5122573
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,320 in stock

#C5122573

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.71	₹88.55
50+	₹14.06	₹703.00
150+	₹12.25	₹1,837.50
500+	₹10.89	₹5,445.00
2,500+	₹9.79	₹24,475.00
5,000+	₹9.25	₹46,250.00

Quantity (min 5, multiples of 5)

5 × ₹17.71

₹88.55

excl. GST

₹104.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SL4558S

₹88.55 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 5nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 30nA
Common Mode Rejection Ratio(CMRR): 90dB
Features: Built-in compensation
Dual Supply: -15V~15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

The SL4558 is a monolithic integrated circuit designed for dual operational amplifier.

Key features

No frequency compensation required.
No latch-up
Large commom mode and differential voltage range
Parameter tracking over temperature range
Gain and phase match between amplifiers
Internally frequency compensated
Low noise input transistors
