SlkorDatasheet (PDF)

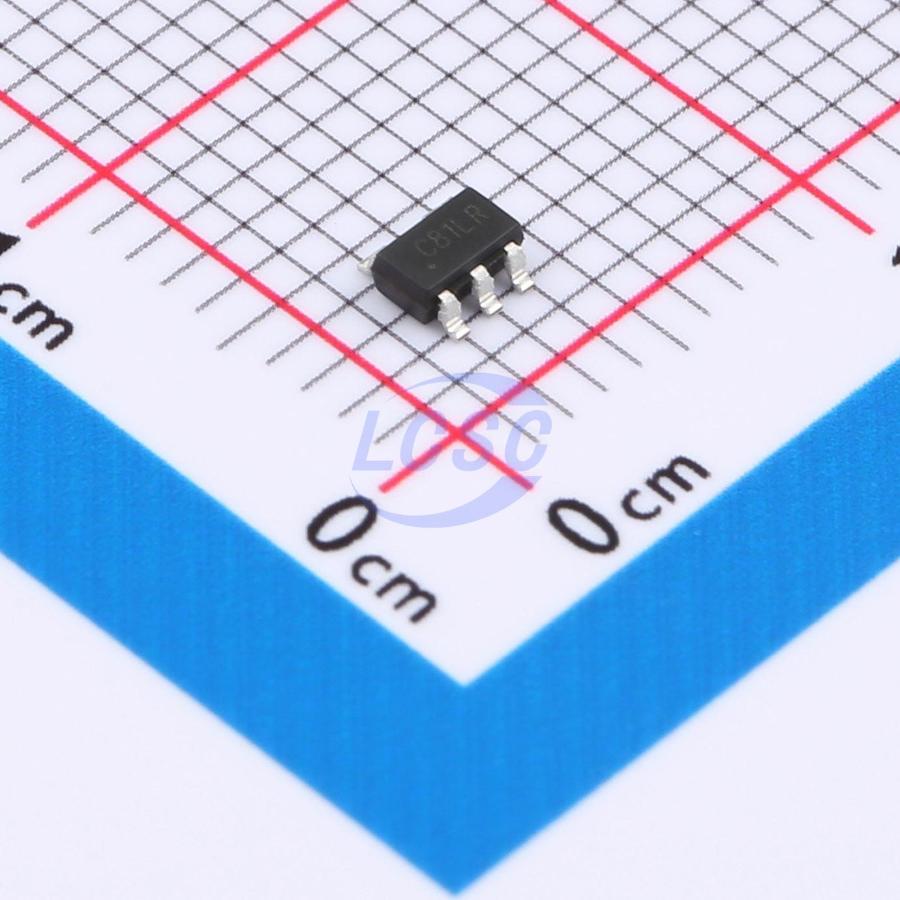

SL8581XT5
65mA 1 25uV 0.7V/us 110dB 100pA 1.8MHz 350uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
High-Precision, Rail-to-Rail I/O Operational Amplifier
- Manufacturer
- Slkor
- Manufacturer part #
- SL8581XT5
- Store part #
- C41369478
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C41369478
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.54 | ₹147.70 |
| 50+ | ₹23.07 | ₹1,153.50 |
| 150+ | ₹20.29 | ₹3,043.50 |
| 500+ | ₹16.84 | ₹8,420.00 |
| 3,000+ | ₹14.54 | ₹43,620.00 |
| 6,000+ | ₹13.61 | ₹81,660.00 |
5 × ₹29.54
₹147.70
excl. GST
₹174.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL8581XT5
₹147.70 for 5 + GST
Specifications
- Output Current
- 65mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Gain Bandwidth Product
- 1.8MHz
- Quiescent Current
- 350uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.15V;1.15V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The SL 8581(single) and SL8582(dual) are high-precision, low-quiescent current amplifier which can offer high input impedance and rail to rail input and output. The amplifier uses auto-zeroing techniques to provide low offset voltage (25μV type) and near zero-drift over time and temperature. Either single or dual supplies can be used in the range from 2.3V to 5.5V (±1.15V to ±2.75V). The SL 8581 is available in SC70-5, SOT23-5, MSOP-8 and SOP-8. The SL8582 is available in MSOP-8 and SOP-8. All versions are specified for operation from -40 °C to +125 °C.
Applications
- Bridge Amplifier
- Strain Gauges
- Transducer Applications
- Temperature Measurement
- Electronic Scales
- Medical Instrumentation
- Resistance Temperature Detectors
- Handheld Test Equipment
Key features
- Low Offset Voltage: 25μV (Type)
- Zero-Drift: 0.03μV/°C
- Low Noise: 45nV/√Hz
- 0.1-Hz to 10-Hz Noise: 0.55μVpp
- Excellent DC Precision:
- Open-Loop Gain: 135dB
- PSRR: 110dB
- CMRR: 110dB
- Gain Bandwidth: 1.8MHz
- Quiescent Current: 350μA (Type)
- Supply Range: ±1.15V to ±2.75V
- Rail-to-Rail Input and Output
