SlkorDatasheet (PDF)

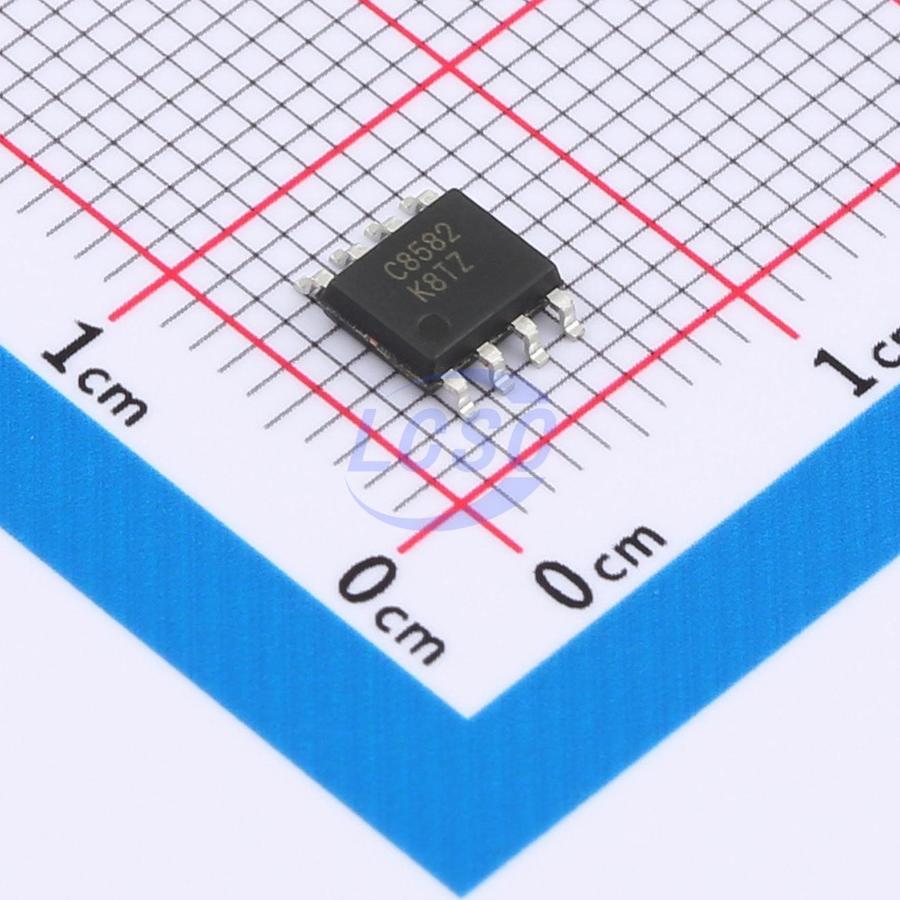

SL8582XS8
24mA 2 25uV 0.7V/us 110dB 100pA 1.8MHz 350uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
High-Precision, Rail-to-Rail I/O Operational Amplifier
- Manufacturer
- Slkor
- Manufacturer part #
- SL8582XS8
- Store part #
- C41369479
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,951 in stock
#C41369479
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.72 | ₹56.72 |
| 10+ | ₹44.56 | ₹445.60 |
| 30+ | ₹39.33 | ₹1,179.90 |
| 100+ | ₹32.82 | ₹3,282.00 |
| 500+ | ₹29.99 | ₹14,995.00 |
| 1,000+ | ₹28.26 | ₹28,260.00 |
1 × ₹56.72
₹56.72
excl. GST
₹66.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL8582XS8
₹56.72 for 1 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Gain Bandwidth Product
- 1.8MHz
- Quiescent Current
- 350uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.15V;1.15V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
The SL 8581(single) and SL8582(dual) are high-precision, low-quiescent current amplifier which can offer high input impedance and rail to rail input and output. The amplifier uses auto-zeroing techniques to provide low offset voltage (25μV type) and near zero-drift over time and temperature. Either single or dual supplies can be used in the range from 2.3V to 5.5V (±1.15V to ±2.75V). The SL 8581 is available in SC70-5, SOT23-5, MSOP-8 and SOP-8. The SL8582 is available in MSOP-8 and SOP-8. All versions are specified for operation from -40 °C to +125 °C.
Applications
- Bridge Amplifier
- Strain Gauges
- Transducer Applications
- Temperature Measurement
- Electronic Scales
- Medical Instrumentation
- Resistance Temperature Detectors
- Handheld Test Equipment
Key features
- Low Offset Voltage: 25μV (Type)
- Zero-Drift: 0.03μV/°C
- Low Noise: 45nV/√Hz
- 0.1-Hz to 10-Hz Noise: 0.55μVpp
- Excellent DC Precision:
- Open-Loop Gain: 135dB
- PSRR: 110dB
- CMRR: 110dB
- Gain Bandwidth: 1.8MHz
- Quiescent Current: 350μA (Type)
- Supply Range: ±1.15V to ±2.75V
- Rail-to-Rail Input and Output
