Slkor

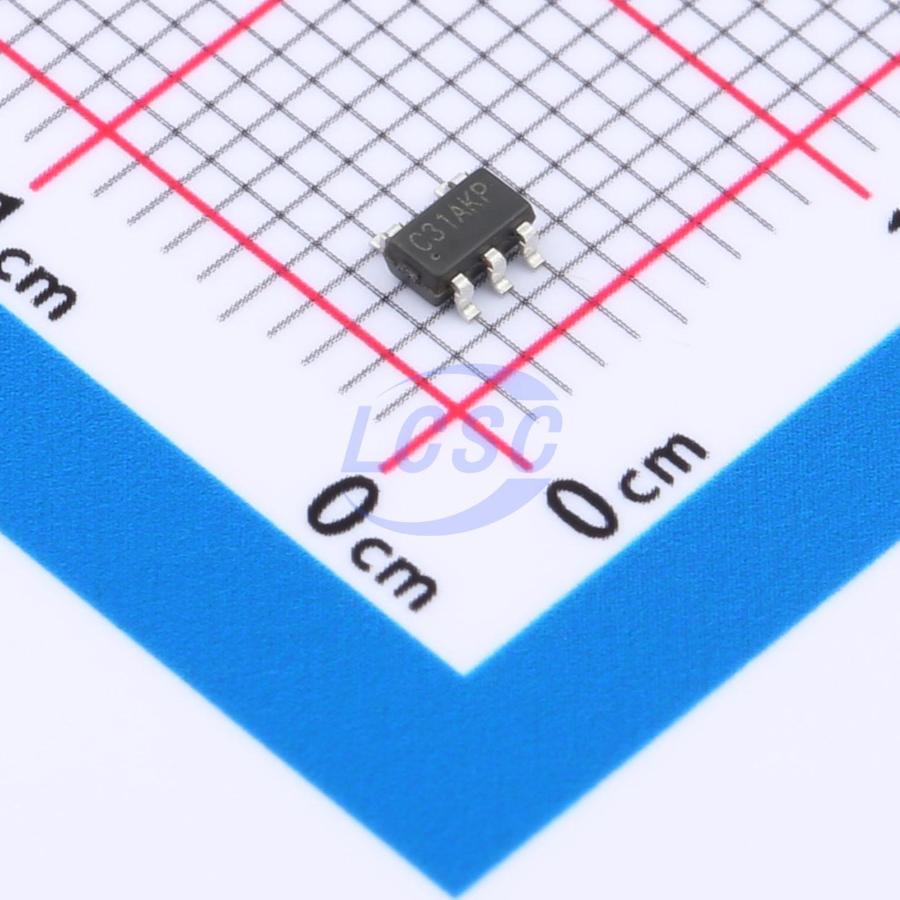

SL8631XT5

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5RoHSActive

RRIO CMOS Operational Amplifier

Manufacturer: Slkor
Manufacturer part #: SL8631XT5
Store part #: C19632480
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C19632480

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.93	₹84.65
50+	₹13.39	₹669.50
150+	₹11.62	₹1,743.00
500+	₹10.28	₹5,140.00
3,000+	₹9.22	₹27,660.00
6,000+	₹8.69	₹52,140.00

Quantity (min 5, multiples of 5)

5 × ₹16.93

₹84.65

excl. GST

₹99.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SL8631XT5

₹84.65 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 4.2mV
Slew Rate: 4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 480uA
Gain Bandwidth Product: 6.5MHz
Features: Built-in compensation
Input Voltage Noise Density: 20nV/√Hz@10kHz
Dual Supply: -2.25V~-1.05V;1.05V~2.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The SL8631 (single), SL8632 (dual), and SL8634 (quad) are low-noise, low-voltage, micropower op-amps. The SL863x series features 6.5MHz bandwidth, 4V/μs slew rate, and 480μA quiescent current per amplifier at 5V supply voltage. The SL863x series op-amps are well-suited for a wide range of applications. The SL863x op-amps are designed to deliver optimal performance in low-voltage and low-noise systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 4.2mV. The SL863x provides rail-to-rail output swing under heavy output loads. The SL863x series operates from a single or dual supply of +2.1V to +5.5V. All versions are specified for operation over the extended industrial temperature range of -40°C to +125°C.

Applications

Photodiode and sensor interface
Audio output
Active filters
Driving A/D converters
Portable and battery-powered devices

Key features

High slew rate: 4V/μs
Gain bandwidth product: 6.5MHz
Low power consumption: 480μA supply current per amplifier
Settling time to 0.1% (2V step): 1μs
Low noise: 20nV/√Hz @10kHz
High gain: 103dB
Low offset voltage: 4.2mV (max)
Unity-gain stable
Rail-to-rail input and output, input voltage range: -0.1V to +5.1V (5V supply voltage)
Operating supply range: +2.1V to +5.5V
Operating temperature range: -40°C to +125°C
