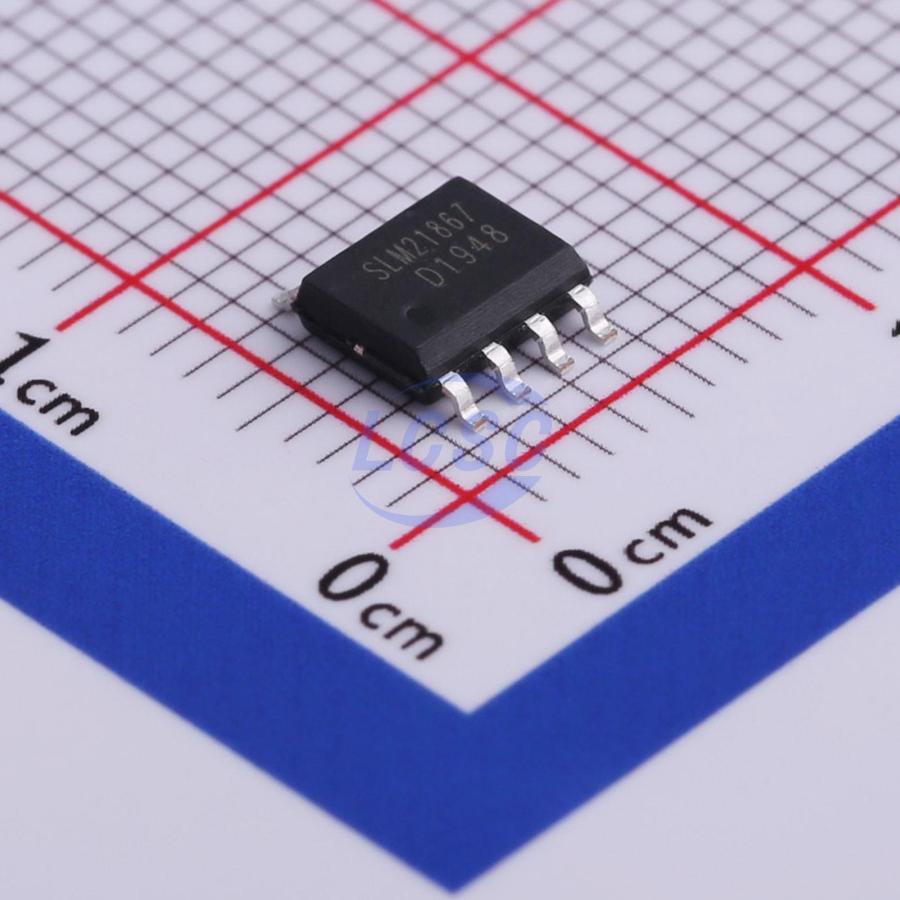

SLM21867CA-DG

The SLM21867 is a high voltage, high speed power MOSFET and IGBT drivers with independent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.

Key features

• Floating channel designed for bootstrap operation
• Fully operational to +600 V
• Low VCC operation
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 7 V to 20 V
• Undervoltage lockout for both channels
• 3.3 V, and 5 V logic compatible
• CMOS Schmitt-triggered inputs with pull-down
• Matched propagation delay for both channels
• Outputs in phase with inputs
• RoHS compliant SOP8 package
