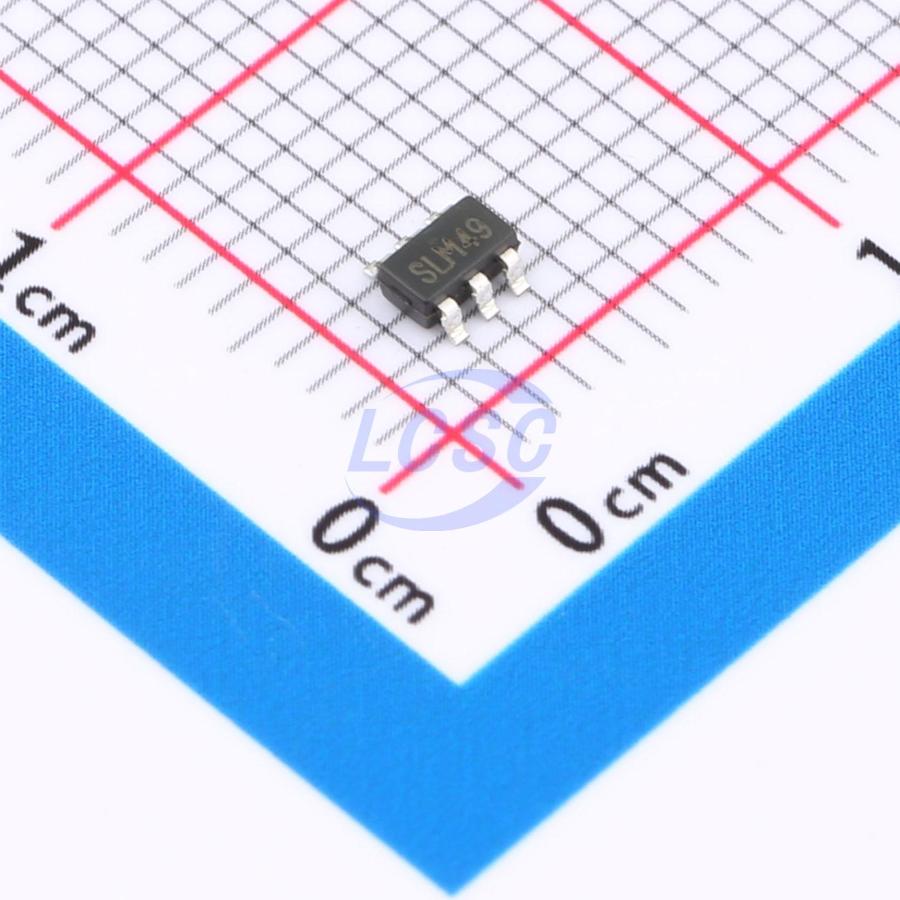

SLM4900
Lithium Battery 800mA SOT-23-6 Battery Management RoHS
SOT-23-6ROHS CompliantActive
Standalone Linear Li-Ion Battery Charger
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM4900
- Store part #
- C130320
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C130320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.18 | ₹60.90 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.43 | ₹1,264.50 |
| 500+ | ₹7.49 | ₹3,745.00 |
| 3,000+ | ₹7.05 | ₹21,150.00 |
| 6,000+ | ₹6.68 | ₹40,080.00 |
5 × ₹12.18
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SLM4900
₹60.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 45uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The SLM4900 is a complete constant- current constant- voltage linear charger for single cell lithium- ion batteries. Its SOT- 23- 6L package and low external component count make the SLM4900 ideally suited for portable applications. Furthermore, the SLM4900 is specifically designed to work within USB power specifications.
Applications
- Cellular Telephones/ PDAs/ MP3 Players
- Charging Docks and Cradles
- Bluetooth Applications
Key features
- Programmable Charge Current Up to 800mA
- No MOSFET, Sense Resistor or Blocking- Diode Required
- Constant- Current/Constant- Voltage Operation with Thermal Regulation
- Charges Single Cell Li- Ion Battery Directly from USB Port
- Battery Reversal Protection
- Preset 4.2V Charge Voltage with ±1% Accuracy
- 2.9V Trickle Charge Threshold
- Available Without Trickle Charge
- Soft- Start Limits Inrush Current
- RoHS Compliant and 100% Lead (Pb)- Free
