SLM6335

SLM6335 is a 2.5A lithium ion battery charger for 5V adapter. It is a synchronous buck converter with a fixed frequency of 550kHz. It has a charging efficiency of more than 90% and a very small calorific value. SLM6335 integrates 28V high- voltage devices, which can effectively prevent chip is damaged by surge voltage or incorrect connection of high- voltage adapter, and has high security. The SLM6335 includes a complete charging termination circuit, automatic recharging and a 4.35V preset charging voltage with an accuracy of ±1%. The SLM6335 has many functions, such as anti back filling protection, output short circuit protection, chip and battery temperature protection. SLM6335 is packaged in a miniaturized DFN3x3- 10L package, which requires only a small number of peripheral components and a very small area of PCB board. Therefore, SLM6335 can be embedded in various handheld applications as an efficient charger for large capacity batteries.

Applications

• Electronic cigarette
• Electric toys
• Power tools
• MP3 and MP4 players
• Digital camera
• Electronic dictionary
• GPS
• Portable equipment, various chargers

Key features

• The highest withstand voltage can reach 28V
• 6.3V input overvoltage protection
• Fixed switching frequency of 550kHz
• High output efficiency of more than 90%
• Maximum adjustable output current of 2.5A
• Automatic identification of input current and adaptive adapter
• There is no need to prevent reverse current diode
• No external power MOS transistor or freewheeling diode is required
• Accuracy of 4.35V charging voltage with accuracy of ±1%
• It can withstand 28V high voltage charging state dual indication output
• Shutdown current is only 20uA
• 2.9V trickle charging
• Soft start limits surge current
• Battery temperature monitoring function
• Output short circuit protection function

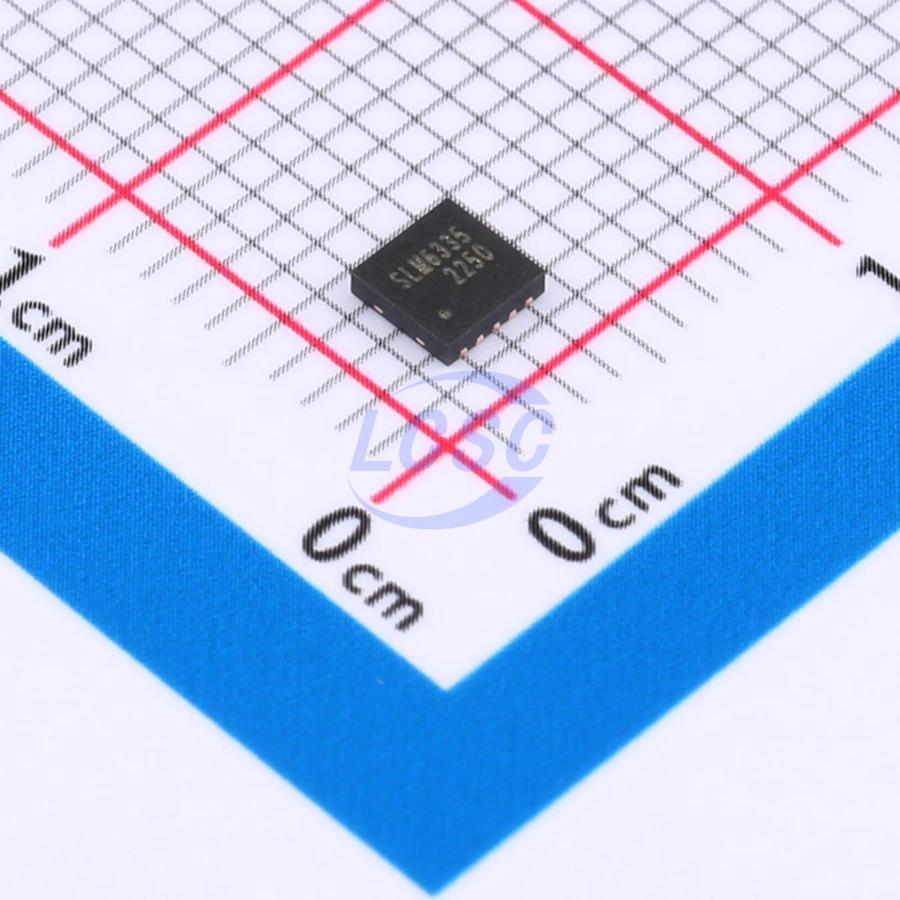

• DFN3x3-10L package
