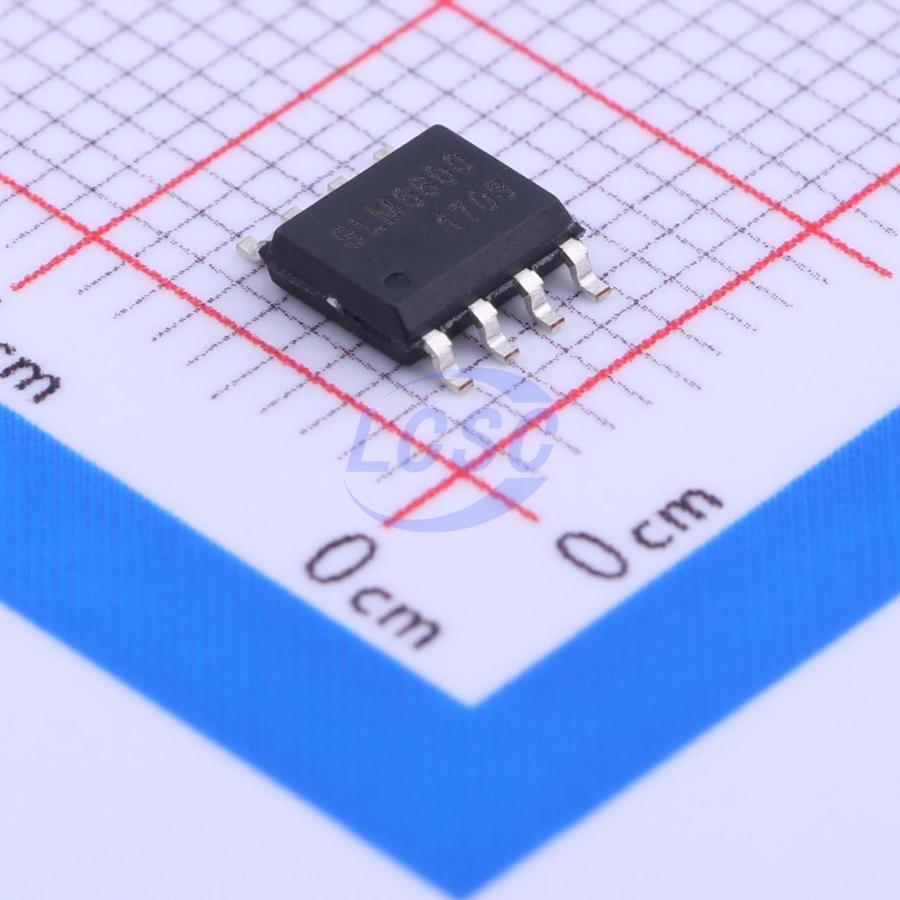

SLM6600
Lithium Battery 3.5A SOP-8-EP Battery Management RoHS
3A synchronous step-down lithium battery charging IC
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM6600
- Store part #
- C130316
- Package / case
- SOP-8-EP
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,050 in stock
#C130316
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.00 | ₹215.00 |
| 50+ | ₹33.57 | ₹1,678.50 |
| 150+ | ₹29.55 | ₹4,432.50 |
| 500+ | ₹24.51 | ₹12,255.00 |
| 2,500+ | ₹21.60 | ₹54,000.00 |
| 5,000+ | ₹20.25 | ₹1,01,250.00 |
5 × ₹43.00
₹215.00
excl. GST
₹253.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM6600
₹215.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 70uA
- Operating Voltage
- 4V~6V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Short-Circuit Protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 3.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The SLM6600(S) is a 3A single cell Li- ion battery charger applied for 5V adapters. It utilizes 0.8MHz synchronous buck converter topology to reduce power dissipation and therefore reaches a high efficiency up to 92%. The SLM6600(S) includes complete charge termination circuitry, automatic recharge, and a ± 1% 4.2V float voltage. It also has other features include output short- circuit protection, battery temperature monitor, overheating protection, and no blocking diode is required. The SLM6600(S) is available in ESOP8 package with heat sink. Its few external component count makes the SLM6600(S) a high- efficient battery charger ideally suited for portable applications.
Applications
- Cellular Telephones
- MP3, MP4 Players
- GPS, Digital Cameras
- Electronic Dictionaries
- Portable Devices, Chargers
Key features
- 0.8MHz Fixed Switching Frequency
- High Efficiency up to 92%
- 3.5A Maximum Charge Current
- No External MOSFET or Blocking Diode Required
- Preset 4.2V Charge Voltage with ± 1% Accuracy
- Automatic Recharge
- Charge State Pairs of Output, No Battery and Fault Status Display
- 70uA Supply Current in Shutdown
- 2.9V Trickle Charge
- Soft- Start Limits Inrush Current
- Battery Temperature Monitoring
- Short- Circuit Protection
- Available in 8- Pin ESOP Package
