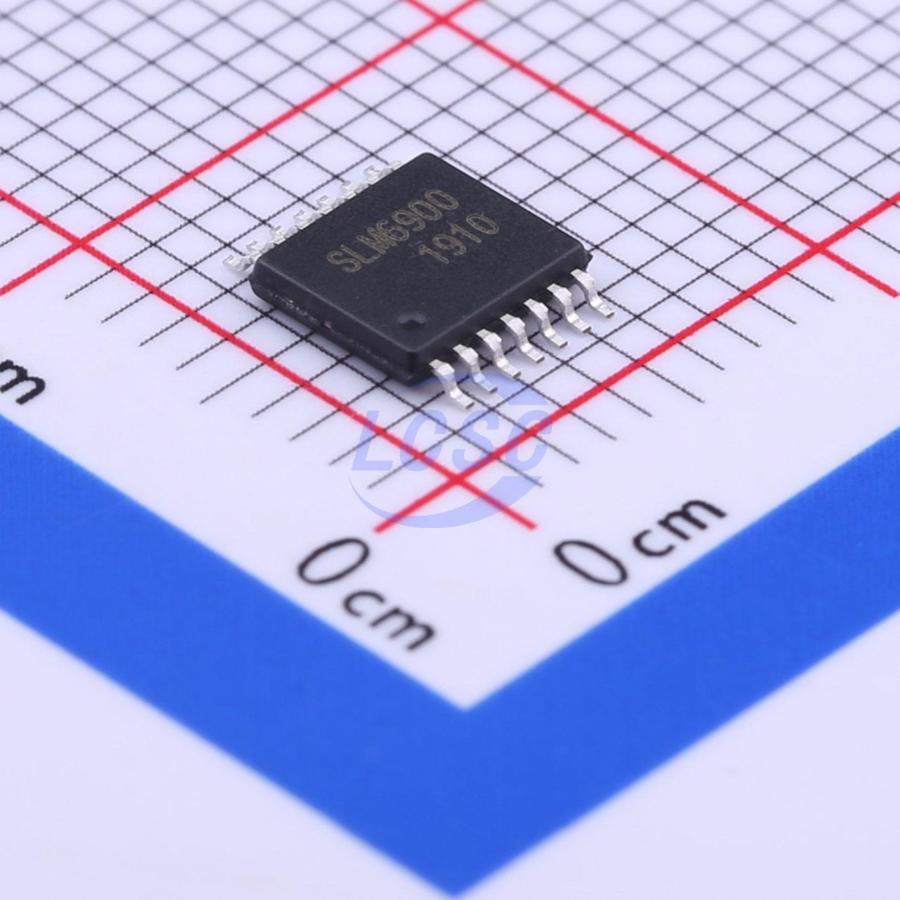

SLM6900
2.6A TSSOP-14 Battery Management RoHS
Switching multi-cell multi-type lithium battery charging circuit
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM6900
- Store part #
- C388595
- Package / case
- TSSOP-14
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,872 in stock
#C388595
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.35 | ₹67.35 |
| 10+ | ₹53.01 | ₹530.10 |
| 30+ | ₹46.93 | ₹1,407.90 |
| 100+ | ₹39.33 | ₹3,933.00 |
| 500+ | ₹36.06 | ₹18,030.00 |
| 1,000+ | ₹33.90 | ₹33,900.00 |
1 × ₹67.35
₹67.35
excl. GST
₹79.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM6900
₹67.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 35uA
- Type of Battery
- Lithium Battery;LiFePO4 Battery
- Operating Voltage
- 6.8V~28V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.6A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.088 g
Overview
The SLM6900 is a charging circuit that supports multi- cell lithium or lithium iron phosphate batteries. It is preset with a three- or four- cell lithium battery charging mode and supports other output voltage modes that are regulated by a peripheral divider resistor. It is a step- down switching converter with a fixed frequency of 300KHz, so it has high charging efficiency and very low heat generation. The SLM6900 includes a complete charge termination circuit, automatic recharge, and a charge voltage control circuit with an accuracy of ± 1.0%. It integrates input low voltage protection, output short circuit protection, and battery temperature protection. The SLM6900 is housed in a TSSOP- 14L package and has a simple peripheral application as an efficient charger for large- capacity batteries.
Applications
- Handheld Device
- Laptop
- Convenience Industrial or Medical Equipment
- Power Tools
- Lithium Battery or Lithium Iron Phosphate Battery
Key features
- Wide Input Voltage Range
- 300KHz Fixed Switching Frequency
- Preset 3 or 4 Lithium Battery Output Voltages
- Adjustable Output Voltage
- Output Voltage Accuracy: ± 1.0%
- Charging Status Dual Indication, No Battery and Fault Status Indication
- Low voltage trickle charging function
- Soft Start Limits Inrush Current
- Battery Temperature Monitoring Function
- High Surge Voltage Capability
- Packaging with TSSOP- 14L
