SOLA-ICDatasheet (PDF)

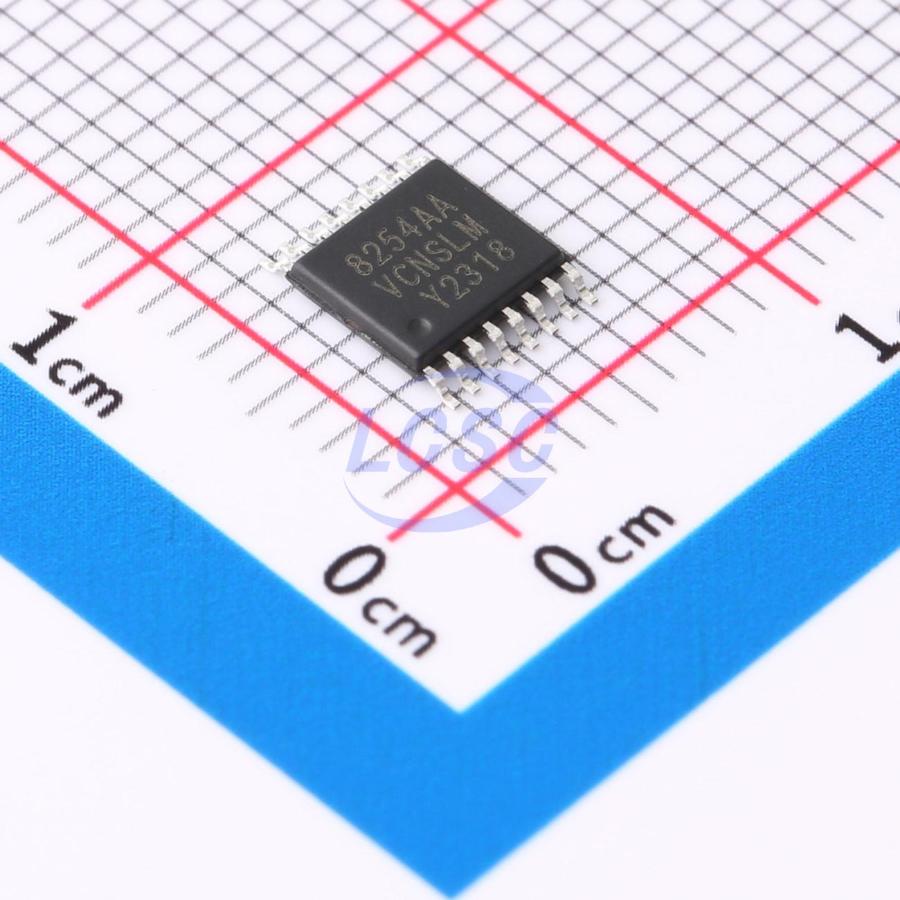

SLM8254AAV
Lithium-ion/Polymer TSSOP-16
TSSOP-16ROHS CompliantActive
3/4 series battery pack protection circuit
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM8254AAV
- Store part #
- C7541669
- Package / case
- TSSOP-16
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,920 in stock
#C7541669
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.37 | ₹221.85 |
| 50+ | ₹34.50 | ₹1,725.00 |
| 150+ | ₹30.27 | ₹4,540.50 |
| 500+ | ₹24.99 | ₹12,495.00 |
| 3,000+ | ₹24.93 | ₹74,790.00 |
| 6,000+ | ₹23.51 | ₹1,41,060.00 |
5 × ₹44.37
₹221.85
excl. GST
₹261.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SLM8254AAV
₹221.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Operating Voltage
- 3V~24V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The SLM8254 series is a protection IC designed for 3-cell or 4-cell series lithium-ion/lithium-polymer rechargeable battery packs, incorporating a high-accuracy voltage detector and delay circuit. The SLM8254 series supports switchable configuration between 3-cell and 4-cell protection via the SEL pin.
Key features
- 3-level overcurrent detection
- Overcharge detection delay time, overdischarge detection delay time, and overcurrent 1 detection delay time are settable via external capacitor; overcurrent detection 2 and 3 delay times are internally fixed
- Charge/discharge control via control terminal
- Low quiescent current: 30μA max during operation (+25°C), 0.1μA max during sleep (+25°C)
- TSSOP-16 package
