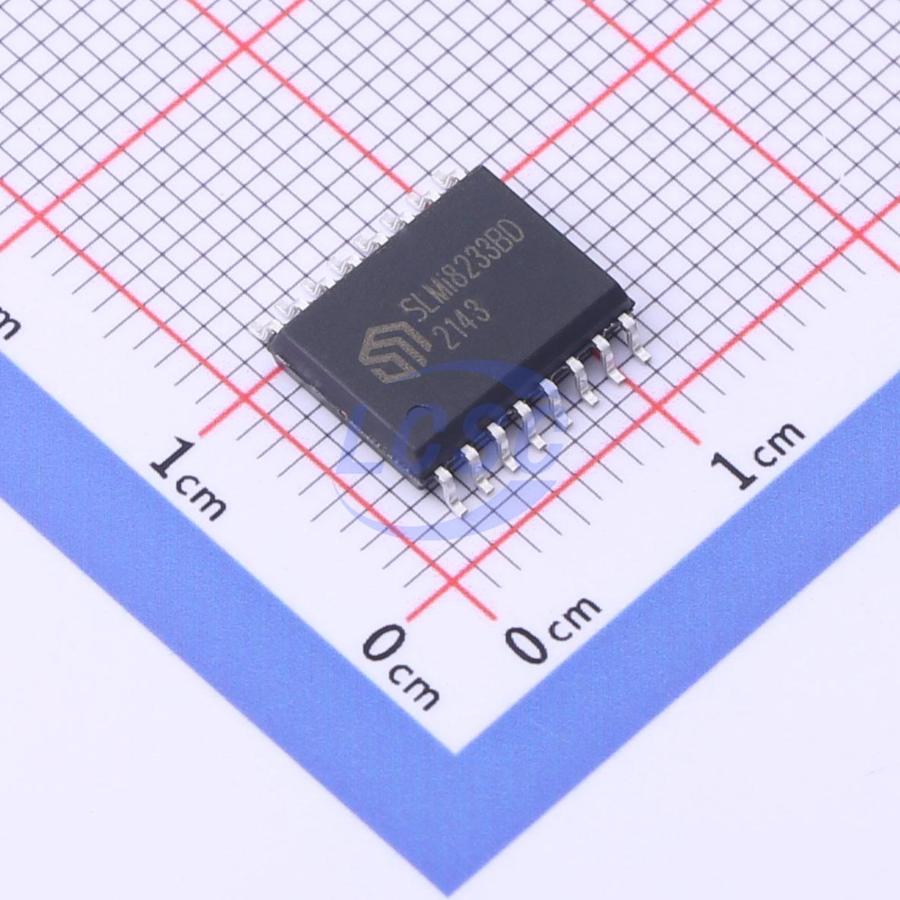

The SLMi823x isolated driver family is an isolated dual channel gate driver with different configurations. The SLMi8230/1/3/4 are configured as high-side/lowside drivers, while the SLMi8232/5 are configured as dual drivers. The peak source output current of SLMi8230/1/2 is 1.0A and the peak source output current of SLMi8233/4/5 is 4.0A. Programmable dead time (DT) feature is available in SLMi8230/1/3/4. Pulling high the DIS pin shuts down both outputs simultaneously, and allows for normal operation when the DIS pin is open or pulled low. As a fail-safe measure, primary-side logic failures force both outputs low. The VDDA and VDDB supply voltage are up to 40V. A wide input VDDI range from 3V to 18V makes the driver suitable for interfacing with both analog and digital controllers. All the supply voltage pins have under voltage lock-out (UVLO) protection. The SLMi823x has 5.0kVRMS isolation in SOP16W package per UL1577. High CMTI, low propagation delay, small size and flexible configuration make the SLMi823x family is suitable for a wide range of isolated MOSFET/IGBT and SiC or GaN FET gate drive applications.

Applications

• AC/DC or DC/DC power supplies in server, telecom and industry
• DC/AC solar inverters
• EV battery charging

Key features

• 1.0A or 4.0A peak source current
• 40ns (Typ.) propagation delay
• 18ns (Max.) pulse width distortion
• 18ns (Max.) delay matching
• 100kV/us (Min.) common mode transient immunity (CMTI)
• Wide input voltage: 3V to 18V
• Up to 40V driver output voltage
• 5V reverse polarity voltage handling capability on input stage
• 1500V functional isolation between two drivers
• Operating temperature: -40°C to +125°C
• Safety certifications: 5kVRMS isolation for 1 minute per UL 1577 with SOP16W package
• CQC certification per GB4943.1-2011
• TUV certification per EN/IEC 61010-1: 2010+A1 and EN/IEC 62368-1: 2018
• DIN V VDE 0884-11 (Planned)
