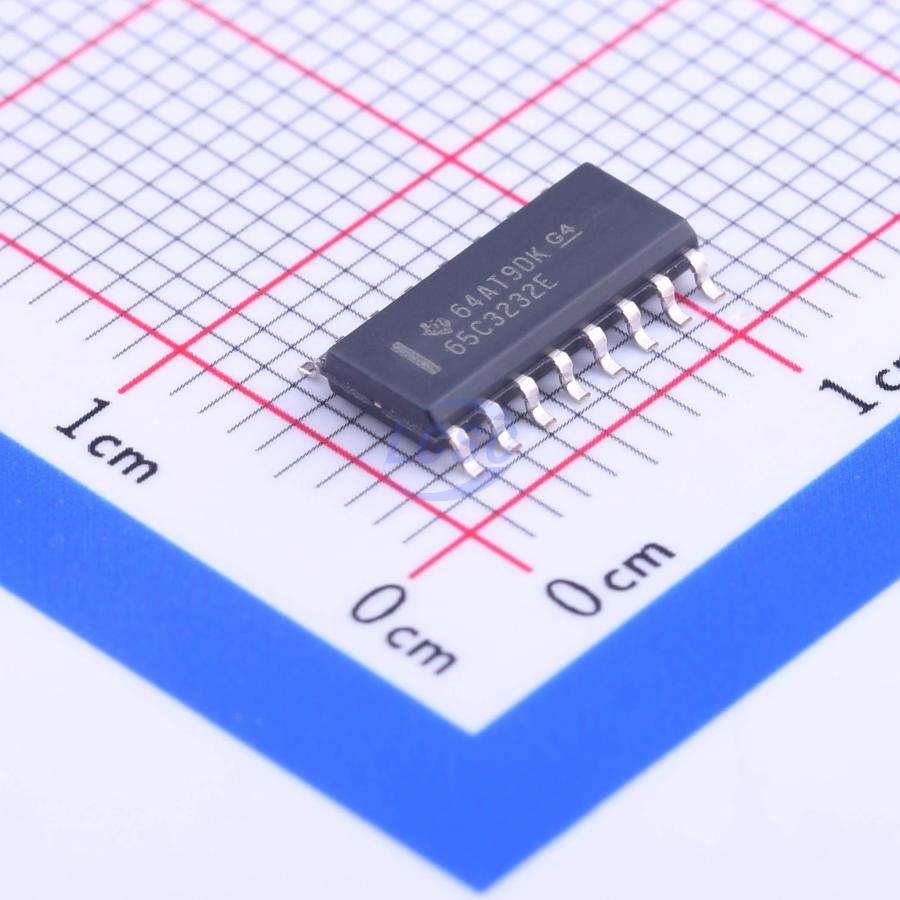

SN65C3232EDR
Transceiver 3V~5.5V 1Mbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
SN65C3232E, SN75C3232E 3-V to 5.5-V Two-Channel RS-232 1-Mbit/s Line Drivers/Receivers
- Manufacturer
- TI
- Manufacturer part #
- SN65C3232EDR
- Store part #
- C130017
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,149 in stock
#C130017
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹351.79 | ₹351.79 |
| 10+ | ₹293.55 | ₹2,935.50 |
| 30+ | ₹257.27 | ₹7,718.10 |
| 100+ | ₹209.03 | ₹20,903.00 |
| 500+ | ₹192.09 | ₹96,045.00 |
| 1,000+ | ₹184.69 | ₹1,84,690.00 |
1 × ₹351.79
₹351.79
excl. GST
₹415.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65C3232EDR
₹351.79 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
The SN65C3232E and SN75C3232E consist of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 1 Mbit/s and a driver output slew rate of 14 V/μs to 150 V/μs.
Applications
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- Operate With 3-V to 5.5-V Vcc Supply
- Operate up to 1 Mbit/s
- Low Supply Current ... 300 μA Typ
- External Capacitors ... 4×0.1 μF
- Accept 5-V Logic Input With 3.3-V Supply
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection for RS-232 Pins
- ±15-kV Human-Body Model (HBM)
- ±15-kV IEC 61000-4-2 Air-Gap Discharge
- ±8-kV IEC 61000-4-2 Contact Discharge
