TIDatasheet (PDF)

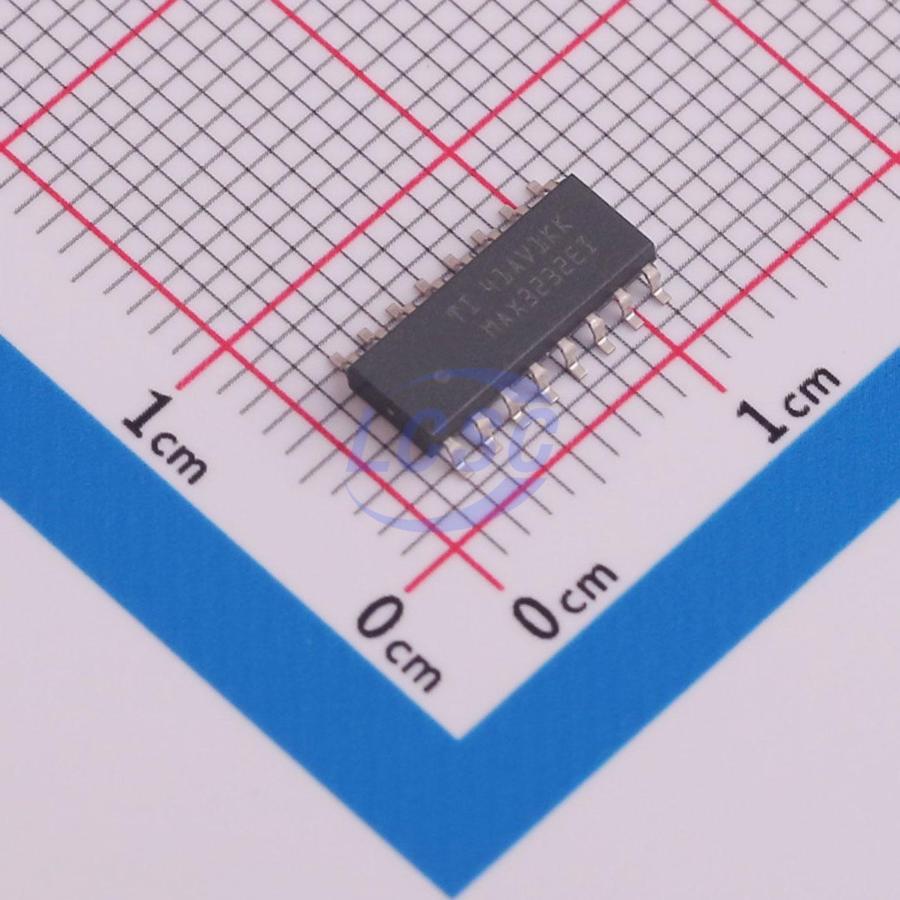

MAX3232EIDR
Transceiver 3V~5.5V 250Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver and Receiver With ±15-kV IEC ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232EIDR
- Store part #
- C193666
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,884 in stock
#C193666
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.31 | ₹52.31 |
| 10+ | ₹40.59 | ₹405.90 |
| 30+ | ₹34.95 | ₹1,048.50 |
| 100+ | ₹29.74 | ₹2,974.00 |
| 500+ | ₹28.44 | ₹14,220.00 |
| 1,000+ | ₹27.57 | ₹27,570.00 |
1 × ₹52.31
₹52.31
excl. GST
₹61.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232EIDR
₹52.31 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
The MAX3232E device consists of two line drivers, two-line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- ESD Protection for RS-232 Bus Pins ±15 kV (HBM) ±8 kV (IEC61000-4-2, Contact Discharge) ±15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA (Typical)
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Pin Compatible to Alternative High-Speed Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ICL3232IBNZ-T#C2652879RENESAS · SOIC-16 | RENESAS | SOIC-16 | 283 | ₹287.06 · 283 in stock | View |
 | TRS3232EIDR#C308878TI · SOIC-16 | TI | SOIC-16 | 1,524 | ₹85.65 · 1,524 in stock | View |
 | SP3232EBEN-L/TR#C6852MaxLinear · SOIC-16 | MaxLinear | SOIC-16 | 5,452 | ₹116.99 · 5,452 in stock | View |
 | ST3232EBDR#C970561ST · SO-16 | ST | SO-16 | 3,085 | ₹111.70 · 3,085 in stock | View |
 | TPT3232A-SO3R#C387974753PEAK · SOP-16 | 3PEAK | SOP-16 | 2,295 | ₹64.34 · 2,295 in stock | View |
