SN74ABT125DR
4.5V~5.5V 1 4 3.2ns@5V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive

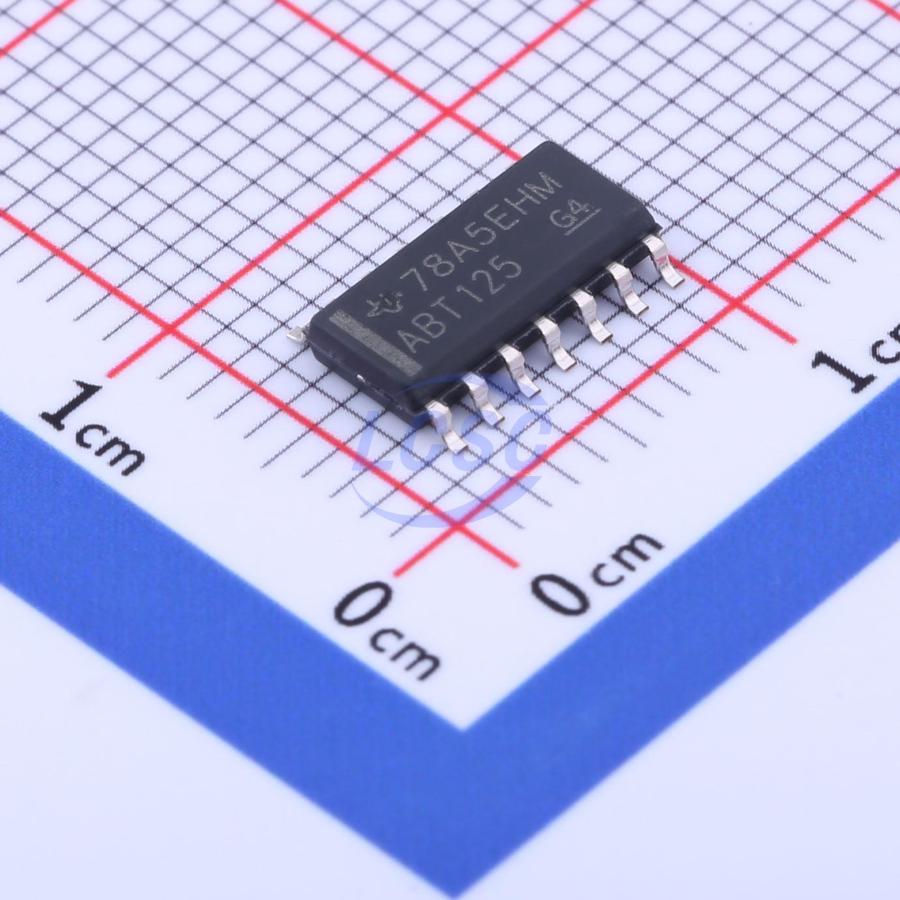

QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74ABT125DR
- Store part #
- C544863
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,704 in stock
#C544863
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.75 | ₹96.75 |
| 10+ | ₹82.29 | ₹822.90 |
| 30+ | ₹72.13 | ₹2,163.90 |
| 100+ | ₹63.93 | ₹6,393.00 |
| 500+ | ₹61.12 | ₹30,560.00 |
| 1,000+ | ₹59.61 | ₹59,610.00 |
1 × ₹96.75
₹96.75
excl. GST
₹114.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74ABT125DR
₹96.75 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 250uA
- Function
- Power-off isolation;Output enable;Hot-swap support
- Current - Output High(IOH)
- 32mA
- Series
- 74ABT
- Current - Output Low(IOL)
- 64mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 3.2ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The 'ABT125 quadruple bus buffer gates feature independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. These devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- Bus buffer driver applications
- Hot-swap scenario applications
Key features
- Typical V_OLP (Output Ground Bounce) < 1V at V_CC = 5V T_A = 25℃
- High-Drive Outputs (-32 - mAIoH, 64 - mAIoL)
- Ioff and Power-Up 3-State Support Hot Insertion
- Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74ABT126D,623#C554140Nexperia · SO-14 | Nexperia | SO-14 | 100 | ₹111.21 · 100 in stock | View |
 | SN74ABT126DR#C205935TI · SOIC-14 | TI | SOIC-14 | 1,630 | ₹97.61 · 1,630 in stock | View |
 | SN74F125DR#C2675540TI · SOIC-14 | TI | SOIC-14 | 5 | ₹186.48 · 5 in stock | View |
 | SN74F126DR#C2867621TI · SOIC-14 | TI | SOIC-14 | 40 | ₹143.68 · 40 in stock | View |
 | MC74VHCT126ADR2G#C904200onsemi · SOIC-14 | onsemi | SOIC-14 | 395 | ₹32.74 · 395 in stock | View |
