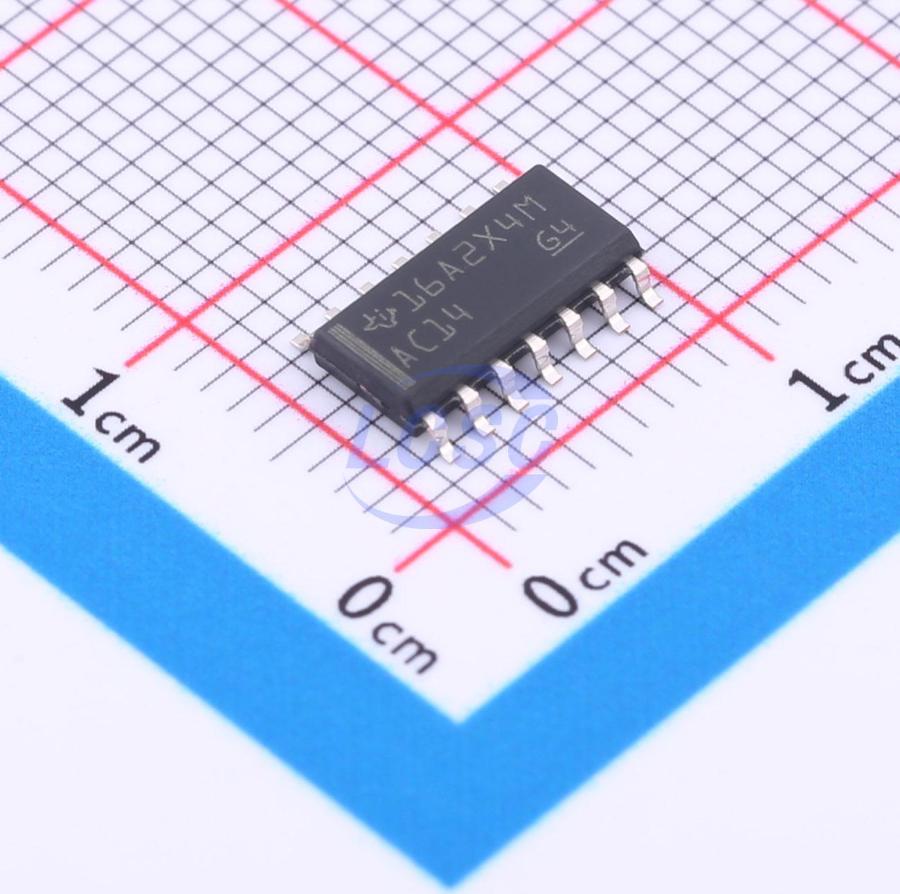

SN74AC14DR
Schmitt trigger 2uA 2V~6V 6 10ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Six-channel Schmitt trigger inverter
- Manufacturer
- TI
- Manufacturer part #
- SN74AC14DR
- Store part #
- C352942
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,029 in stock
#C352942
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.02 | ₹44.02 |
| 10+ | ₹34.70 | ₹347.00 |
| 30+ | ₹29.93 | ₹897.90 |
| 100+ | ₹25.81 | ₹2,581.00 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 1,000+ | ₹24.08 | ₹24,080.00 |
1 × ₹44.02
₹44.02
excl. GST
₹51.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AC14DR
₹44.02 for 1 + GST
Specifications
- output type
- Push-pull
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~1.1V
- Logic Family
- 74AC
- Input Logic Level - High
- 2.2V~3.9V
- Input Type
- Schmitt trigger
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Propagation Delay
- 10ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
These Schmitt trigger devices contain six independent inverters
Applications
- Synchronous inverted clock input
- Switch debouncing
- Digital signal inversion
Key features
- VCC operating range: 2V to 6V
- Input voltage up to 6V
- tpd maximum 9.5ns (at 8V)
