NexperiaDatasheet (PDF)

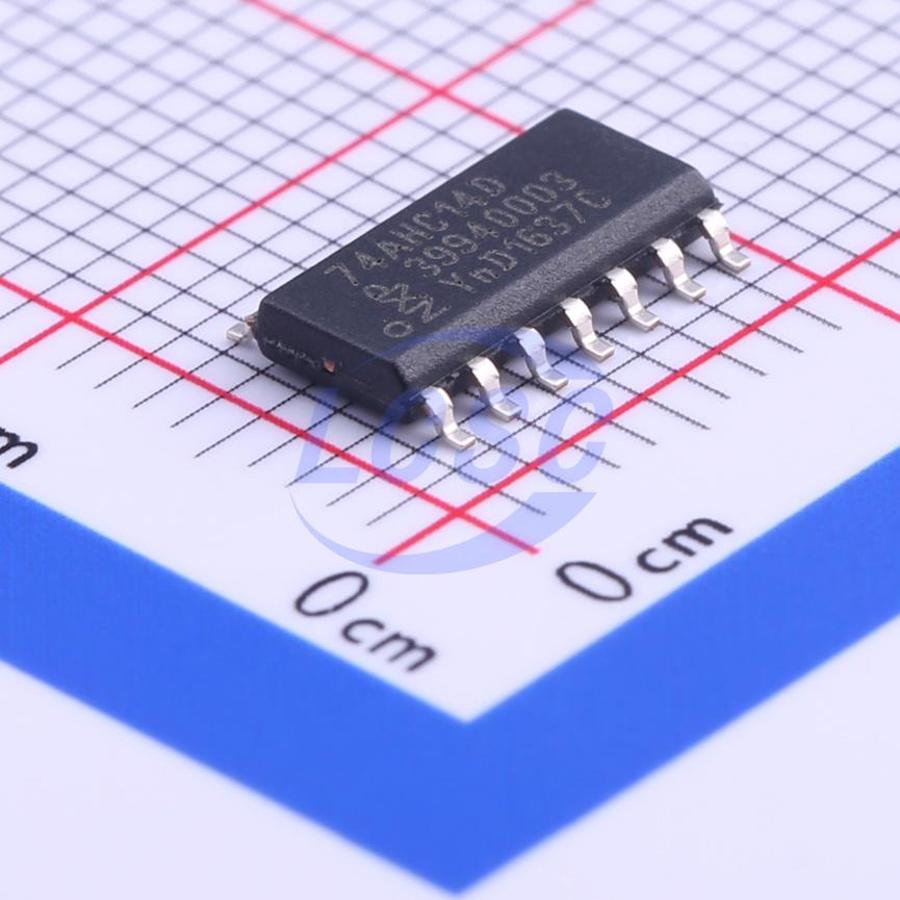

74AHC14D,118
Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC14D,118
- Store part #
- C5510
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,615 in stock
#C5510
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.40 | ₹112.00 |
| 50+ | ₹17.45 | ₹872.50 |
| 150+ | ₹15.33 | ₹2,299.50 |
| 500+ | ₹12.69 | ₹6,345.00 |
| 2,500+ | ₹11.51 | ₹28,775.00 |
| 5,000+ | ₹10.80 | ₹54,000.00 |
5 × ₹22.40
₹112.00
excl. GST
₹132.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHC14D,118
₹112.00 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 10.6ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.2V~3.85V
- Output Logic Level - High
- 4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
The 74AHC14; 74AHCT14 is a hex inverter with Schmitt-trigger inputs. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level shifter for mixed-voltage environments
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Input levels: For 74AHC14: CMOS level; For 74AHCT14: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
