TIDatasheet (PDF)

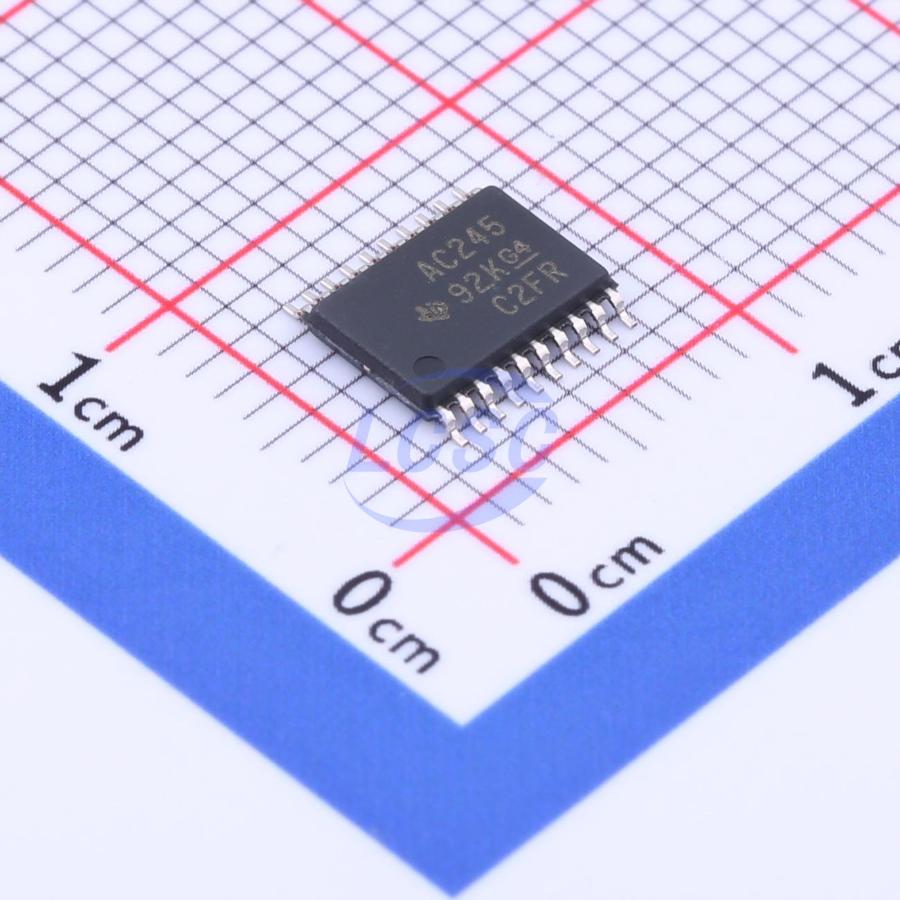

SN74AC245PWR
Transceiver Tri-State Output TSSOP-20
TSSOP-20ROHS3 CompliantActive
Octal bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AC245PWR
- Store part #
- C2652125
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,829 in stock
#C2652125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.98 | ₹42.98 |
| 10+ | ₹36.50 | ₹365.00 |
| 30+ | ₹33.91 | ₹1,017.30 |
| 100+ | ₹30.46 | ₹3,046.00 |
| 500+ | ₹28.95 | ₹14,475.00 |
| 1,000+ | ₹28.07 | ₹28,070.00 |
1 × ₹42.98
₹42.98
excl. GST
₹50.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AC245PWR
₹42.98 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74AC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 3.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The AC245 8-channel bus transceiver is designed for asynchronous bidirectional communication between data buses. The implementation of control functions minimizes external timing requirements. Depending on the logic level on the direction control (DIR) input, the device transmits data from bus A to bus B, or from bus B to bus A. The output enable (OE) input can be used to disable the device, effectively isolating the buses.
Applications
- Professional audio
- Video and signage
- Appliances
- Factory automation and control
Key features
- VCC operating range: 2V to 6V
- Input voltage up to 6V
- tpd max 7ns at 5V
