TIDatasheet (PDF)

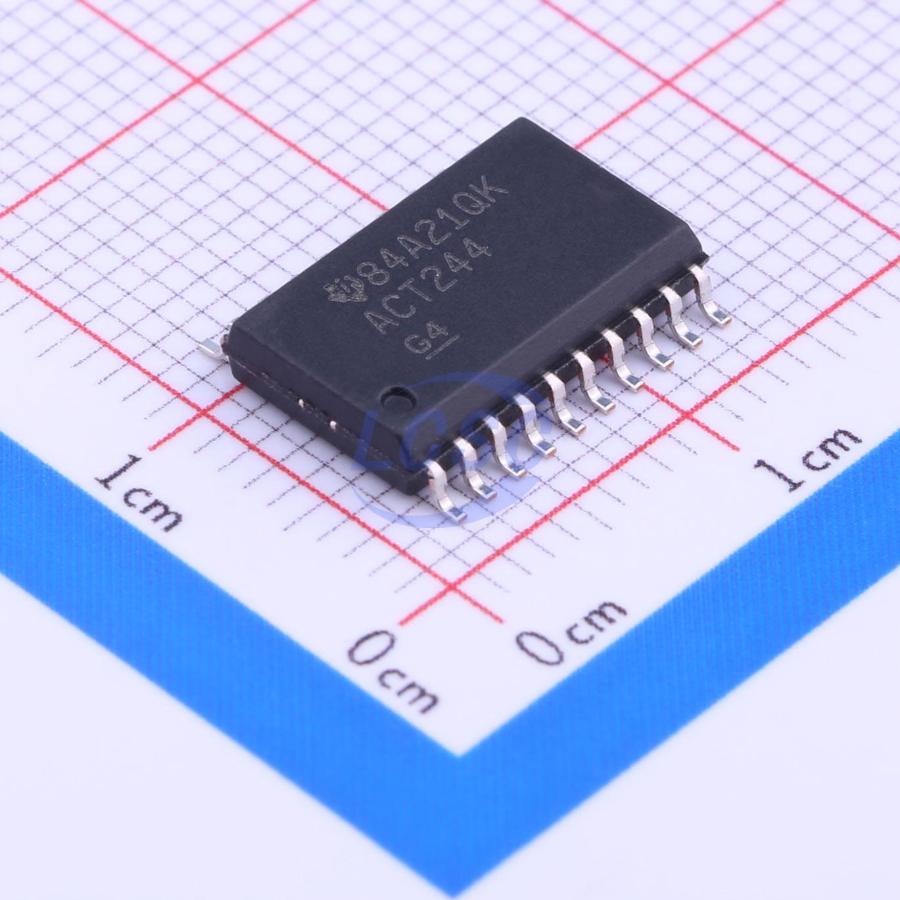

SN74ACT244DWR
4.5V~5.5V 4 2 SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT244DWR
- Store part #
- C6928
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,629 in stock
#C6928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.51 | ₹185.51 |
| 10+ | ₹158.35 | ₹1,583.50 |
| 30+ | ₹144.88 | ₹4,346.40 |
| 100+ | ₹131.41 | ₹13,141.00 |
| 500+ | ₹112.52 | ₹56,260.00 |
| 1,000+ | ₹108.39 | ₹1,08,390.00 |
1 × ₹185.51
₹185.51
excl. GST
₹218.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ACT244DWR
₹185.51 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
These octal buffers/drivers are designed specifically to improve the performance and density of 3- state memory address drivers, clock drivers, and bus- oriented receivers and transmitters. The 'ACT244 devices are organized as two 4- bit buffers/drivers with separate output- enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high- impedance state. To ensure the high- impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.
Applications
- Three-state memory address driver
- Clock driver
- Bus-oriented receiver
- Bus-oriented transmitter
Key features
- 4.5 - V to 5.5 - V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 9.5 ns at 5 V
- Inputs Are TTL Compatible
