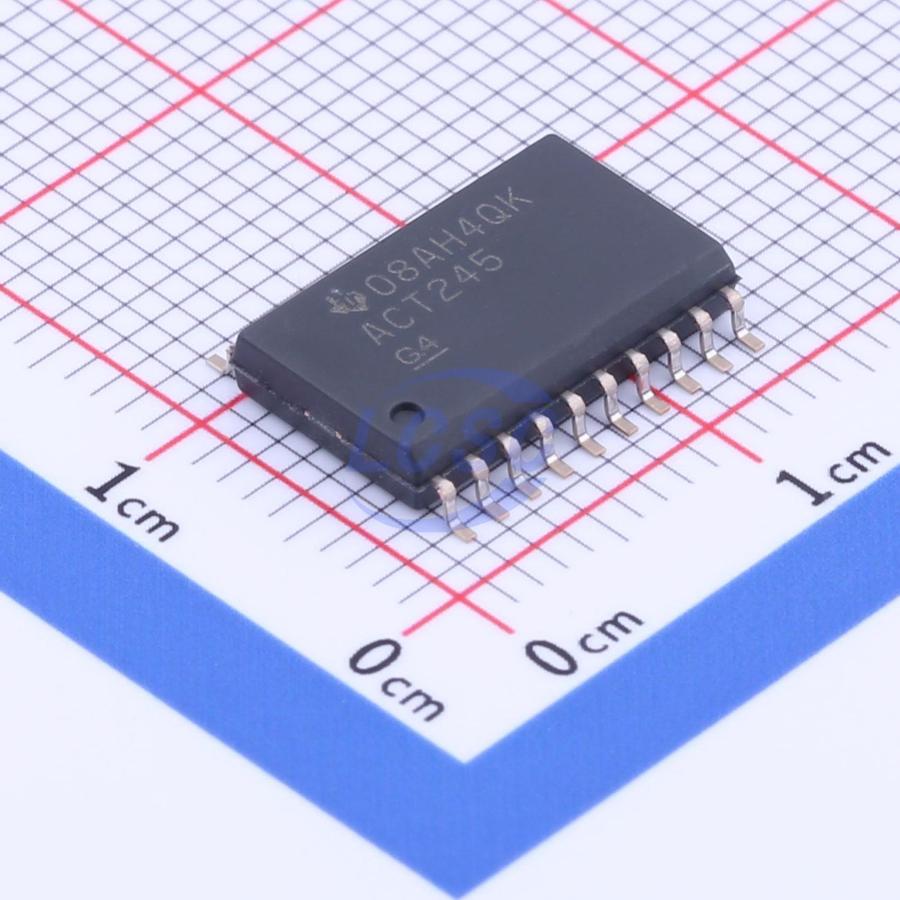

SN74ACT245DWR
Transceiver Tri-State Output SOIC-20-300mil
SOIC-20-300milROHS3 CompliantActive
Octal bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT245DWR
- Store part #
- C2675556
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,045 in stock
#C2675556
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.20 | ₹54.20 |
| 10+ | ₹42.23 | ₹422.30 |
| 30+ | ₹37.00 | ₹1,110.00 |
| 100+ | ₹30.69 | ₹3,069.00 |
| 500+ | ₹27.86 | ₹13,930.00 |
| 1,000+ | ₹26.13 | ₹26,130.00 |
1 × ₹54.20
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ACT245DWR
₹54.20 for 1 + GST
Specifications
- Function
- Output enable;Edge rate controllable
- Input type
- TTL-compatible CMOS
- Current - Output High(IOH)
- 24mA
- Series
- 74AC
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 4ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
AC245 octal bus transceiver is designed for asynchronous bidirectional communication between data buses. The control functions are implemented to minimize external timing requirements.
Applications
- Professional audio
- Video and signage
- Appliances
- Factory automation and control
Key features
- Operating voltage range: 4.5 V to 5.5 V
- Input voltage up to 5.5 V
- tpd max 8 ns at 5 V
- TTL-compatible inputs
- 3-state outputs
- Slower edge rate to reduce output ringing
