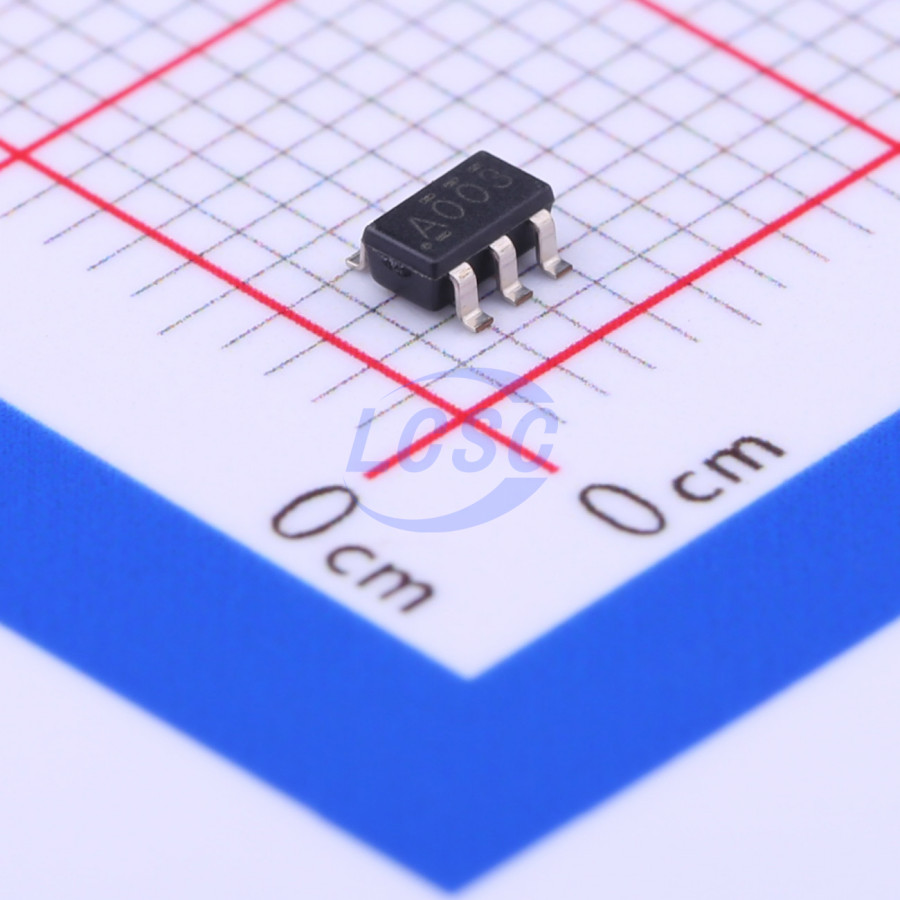

SN74AHC1G00DBVR
Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single 2-Input Positive-NAND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G00DBVR
- Store part #
- C350556
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85,710 in stock
#C350556
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.00 | ₹80.00 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 3,000+ | ₹4.47 | ₹13,410.00 |
| 6,000+ | ₹3.96 | ₹23,760.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹8.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G00DBVR
₹80.00 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The SN74AHC1G00 performs the Boolean function Y = A·B(overline) or Y = A(overline) + B(overline) in positive logic. The SN74AHC1G00 device performs the NAND Boolean function Y = A x B(overline) or Y = A(overline) + B(overline)
Applications
- IP Phones
- Notebook PCs
- Printers
- Access Control and Security
- Solar Inverters
- Personal Electronics
Key features
- Operating Range: 2 V to 5.5 V
- Maximum tpd of 6.5 ns at 5 V
- Low Power Consumption: Maximum ICC of 10 μA
- ±8-mA Output Drive at 5 V
- Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G00W5-7#C842261DIODES · SOT-25 | DIODES | SOT-25 | 2,605 | ₹11.56 · 2,605 in stock | View |
 | 74AHC1G00GV-Q100H#C554267Nexperia · SOT-753 | Nexperia | SOT-753 | 85 | ₹14.69 · 85 in stock | View |
 | SN74AHC1G00DBVRQ1#C34134772TI · SOT-23-5 | TI | SOT-23-5 | 285 | ₹36.90 · 285 in stock | View |
 | TP74AHC1G00S5#C52205178TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,980 | ₹6.77 · 2,980 in stock | View |
 | SN74AHC1G00DBVR#C19829665TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,530 | ₹6.03 · 3,530 in stock | View |
