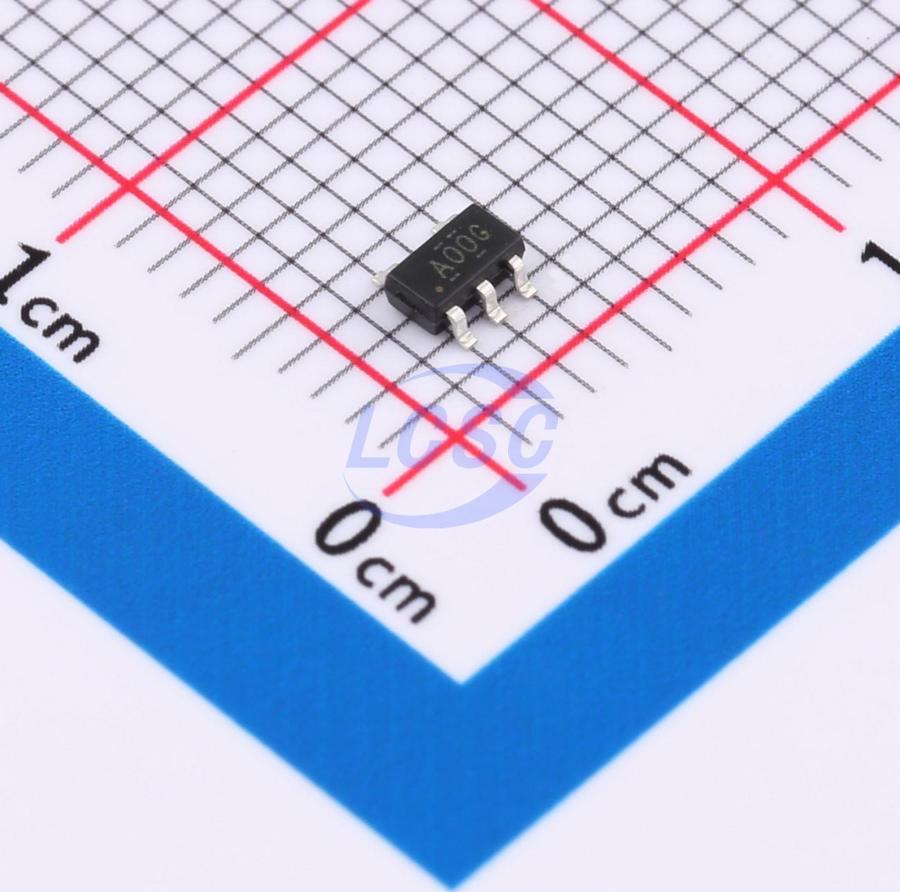

SN74AHC1G00DBVR
1uA 2V~5.5V 7.5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single 2-Input NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G00DBVR
- Store part #
- C19829665
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C19829665
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.03 | ₹60.30 |
| 100+ | ₹4.79 | ₹479.00 |
| 300+ | ₹4.17 | ₹1,251.00 |
| 3,000+ | ₹3.69 | ₹11,070.00 |
| 6,000+ | ₹3.32 | ₹19,920.00 |
| 9,000+ | ₹3.12 | ₹28,080.00 |
10 × ₹6.03
₹60.30
excl. GST
₹71.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G00DBVR
₹60.30 for 10 + GST
Specifications
- Input Logic Level - High
- 2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.4V~2.58V;3.7V~4.4V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV~550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The SN74AHC1G00 is a 2-input NAND gate which provides the Function Y = A(overline) × B(overline)
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 2~5.5V
- Low Power Dissipation: ICC = 1.0μA (Max)
- High Speed: tPD = 4.3ns (Typ)
- ESD Protection Exceeds JESD22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AHC1G00S5#C52205178TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,980 | ₹6.77 · 2,980 in stock | View |
 | MC74VHC1G132DTT1G-TP#C53100487TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,700 | ₹6.18 · 2,700 in stock | View |
 | MC74VHC1G00DTT1G-TP#C53100494TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.74 · 2,960 in stock | View |
 | 74AHC1G00W5-TP#C52098173TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,950 | ₹5.89 · 2,950 in stock | View |
 | 74AHC1G00GV#C19829583TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,270 | ₹7.22 · 2,270 in stock | View |
