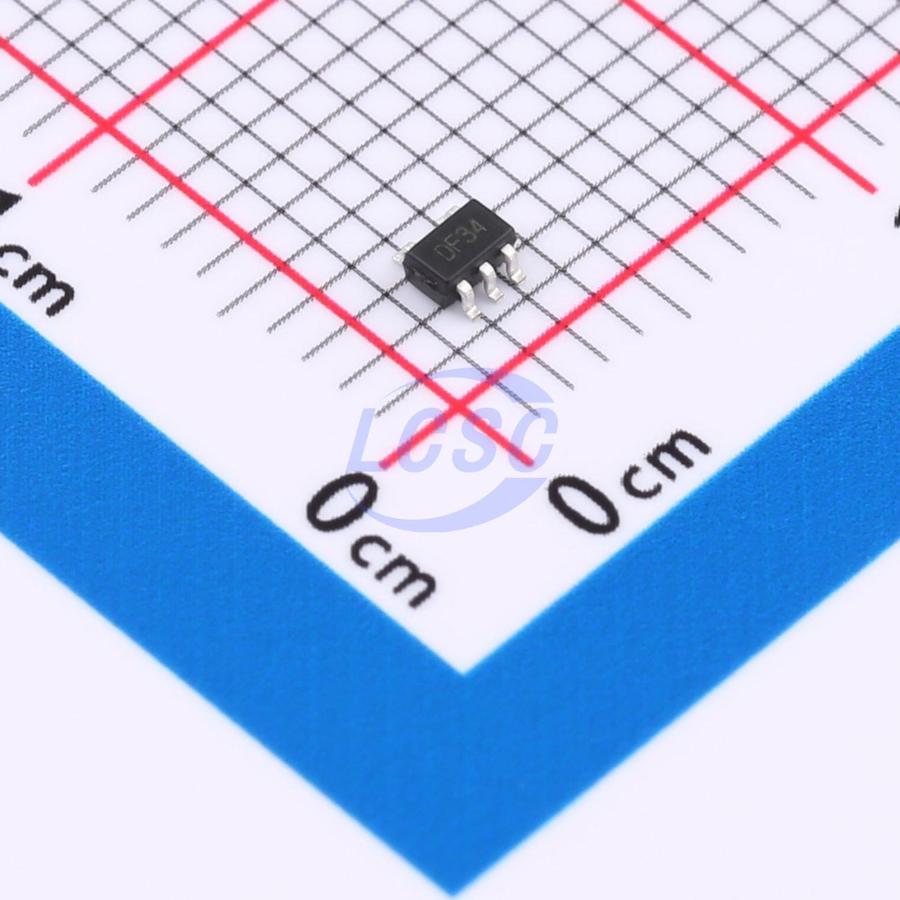

SN74AHC1G125DC(LX)
Buffer Driver Tri-State Output SOT-353
SOT-353RoHSActive
SN74AHC/AHCT1G125 (LX) Single Buffer/Line Driver with Tri-State Control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74AHC1G125DC(LX)
- Store part #
- C22469945
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C22469945
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 3,000+ | ₹4.39 | ₹13,170.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.70 | ₹33,300.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G125DC(LX)
₹72.20 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Current - Output Low(IOL)
- 8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 4.8ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
