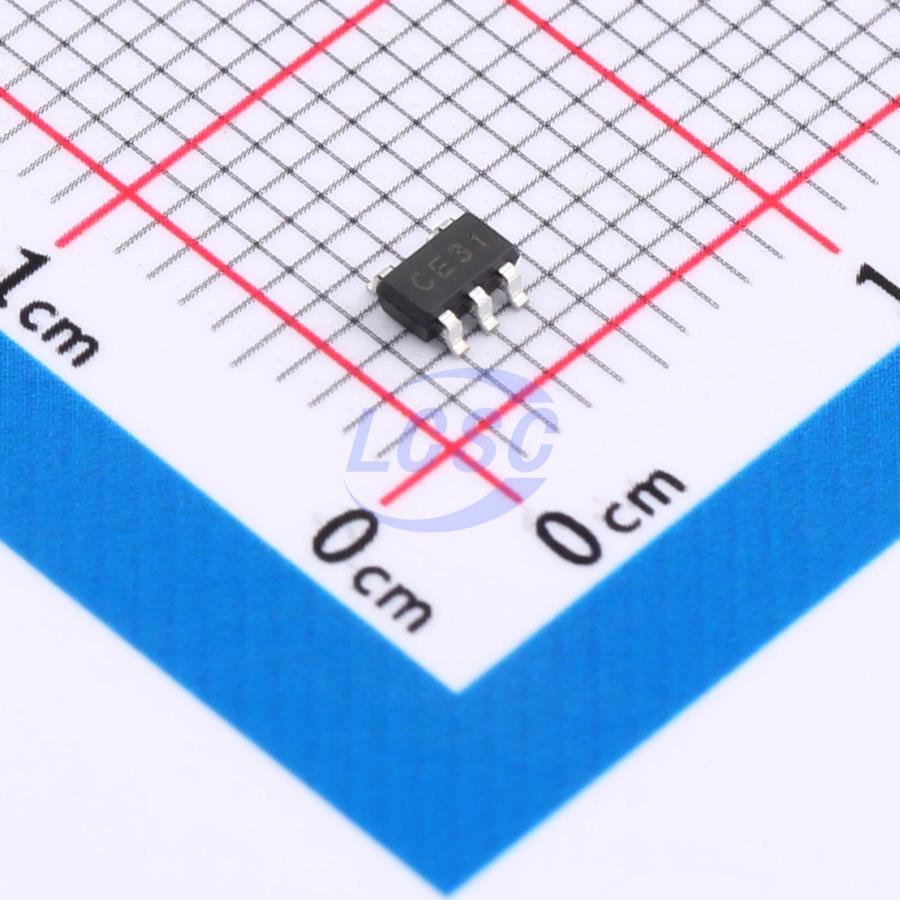

SN74AHC1G14DB(LX)
Schmitt trigger 2V~5.5V 12ns@5.5V,50pF 10uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single-channel Schmitt inverter
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74AHC1G14DB(LX)
- Store part #
- C22384792
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,580 in stock
#C22384792
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.04 | ₹35.20 |
| 50+ | ₹6.11 | ₹305.50 |
| 150+ | ₹5.65 | ₹847.50 |
| 500+ | ₹5.31 | ₹2,655.00 |
| 6,000+ | ₹5.16 | ₹30,960.00 |
5 × ₹7.04
₹35.20
excl. GST
₹41.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G14DB(LX)
₹35.20 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 12ns@5.5V,50pF
- Output Logic Level - Low
- 100mV~440mV
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G14DB(LX)#C22469925lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 1,070 | ₹5.03 · 1,070 in stock | View |
