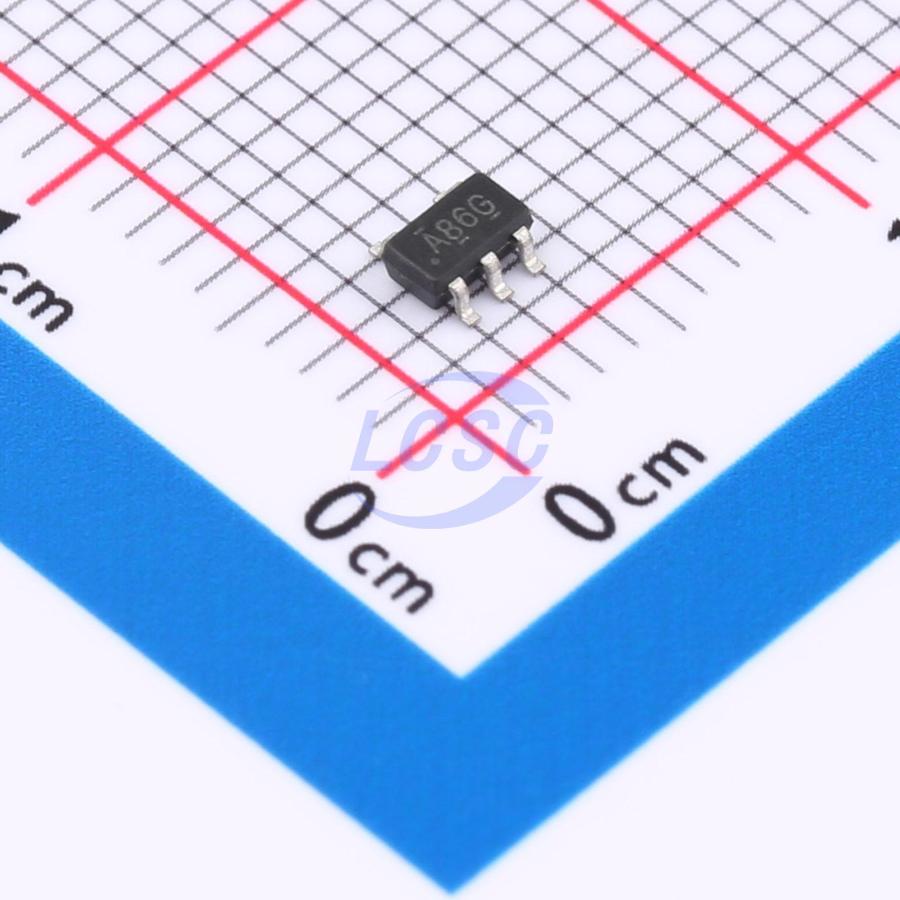

SN74AHC1G86DBVR-MS

1.65V~5.5V 3.7ns@3.3V,50pF 10uA SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Single 2-input XOR gate, operating voltage from 1.65V to 5.5V

Manufacturer: MSKSEMI
Manufacturer part #: SN74AHC1G86DBVR-MS
Store part #: C30602469
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)
