MSKSEMI

SN74LVC1G86DBVR-MS

10uA 1.65V~5.5V 3.7ns@3.3V,50pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

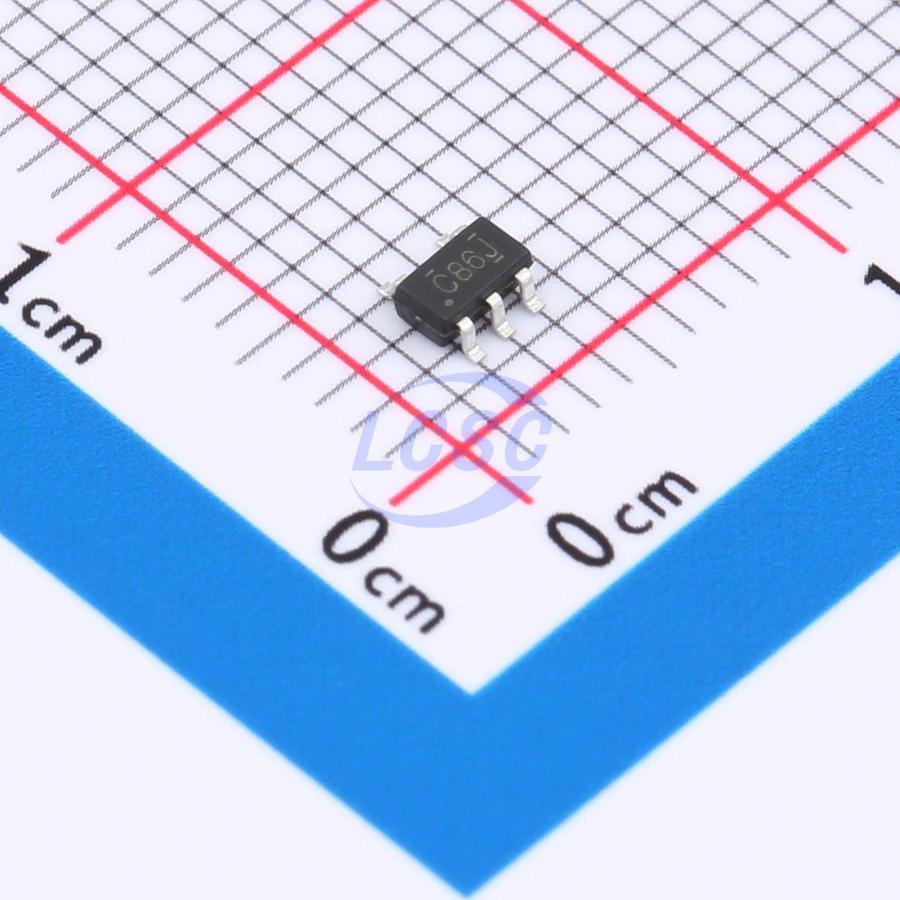

SN74LVC1G86DBVR-MS/SN74LVC1G86DCKR-MS Single 2-Input XOR Gate, Operating Voltage 1.65V to 5.5V

Manufacturer: MSKSEMI
Manufacturer part #: SN74LVC1G86DBVR-MS
Store part #: C30602467
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,190 in stock

#C30602467

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.22	₹72.20
100+	₹5.72	₹572.00
300+	₹4.96	₹1,488.00
1,000+	₹4.39	₹4,390.00
5,000+	₹3.94	₹19,700.00
10,000+	₹3.70	₹37,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.22

₹72.20

excl. GST

₹85.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G86DBVR-MS

₹72.20 for 10 + GST

Specifications

Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 3.7ns@3.3V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

This single 2-input exclusive-OR gate is designed for 1.65V to 5.5V Vcc operation. The SN74LVC1G86DBVR-MS/SN74LVC1G86DCKR-MS Y = A⊕B or ΔB + A(overline)B. A common application is as a true/complement element. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output. This device is fully specified for partial-power-down applications using lof. The loff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
