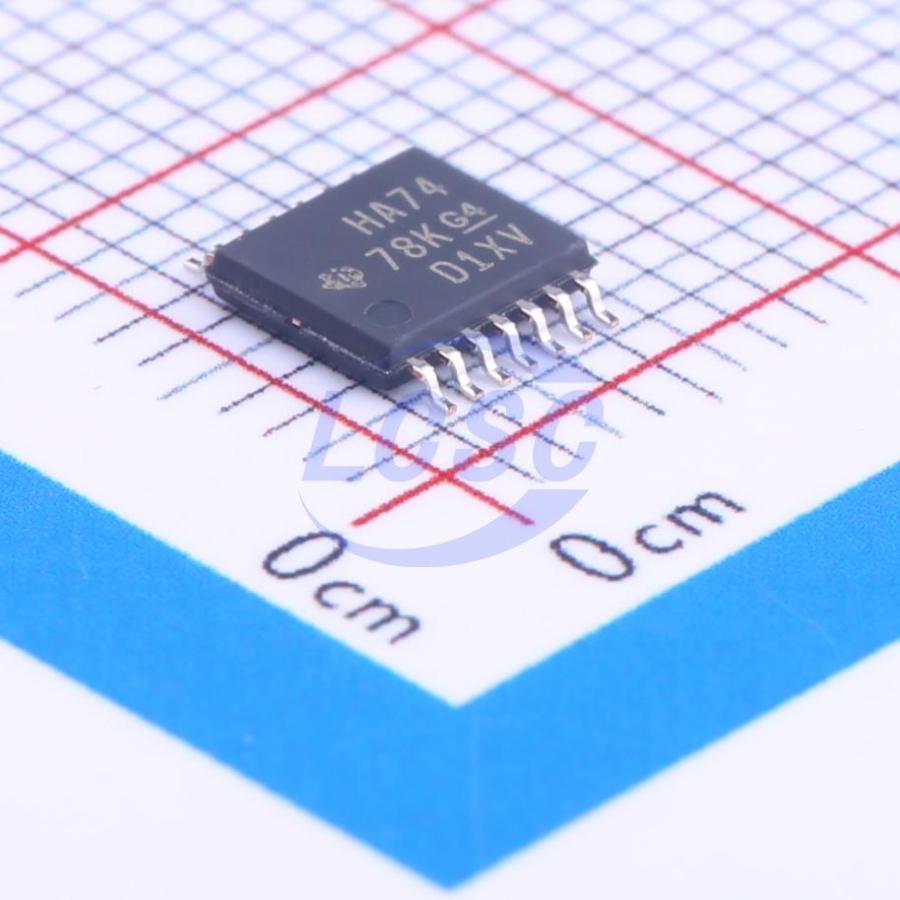

SN74AHC74PWR
2V~5.5V 1 2 9.3ns@5V,50pF TSSOP-14 Flip Flops RoHS
D-type flip-flops
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC74PWR
- Store part #
- C8179
- Package / case
- TSSOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,184 in stock
#C8179
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.17 | ₹48.17 |
| 10+ | ₹38.45 | ₹384.50 |
| 30+ | ₹33.70 | ₹1,011.00 |
| 100+ | ₹29.37 | ₹2,937.00 |
| 500+ | ₹28.30 | ₹14,150.00 |
| 1,000+ | ₹27.65 | ₹27,650.00 |
1 × ₹48.17
₹48.17
excl. GST
₹56.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC74PWR
₹48.17 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74AHC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
- Setup Time
- 5ns
- Quiescent Current
- 2uA
- Hold Time
- 500ps
- Propagation Delay
- 9.3ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The 'AHC74 dual positive-edge-triggered devices are D-type flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.
Key features
- Operating Range 2 V to 5.5 V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22: 2000 V Human-Body Model (A114-A); 200 V Machine Model (A115-A); 1000 V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC74DTR2G#C464023onsemi · TSSOP-14 | onsemi | TSSOP-14 | 65 | ₹27.23 · 65 in stock | View |
 | SN74AHC74QPWRG4Q1#C2677705TI · TSSOP-14 | TI | TSSOP-14 | 9 | ₹157.20 · 9 in stock | View |
 | SN74AHC74QPWRQ1#C507212TI · TSSOP-14 | TI | TSSOP-14 | 3,002 | ₹68.31 · 3,002 in stock | View |
 | 74VHC74FT#C2677845TOSHIBA · TSSOP-14 | TOSHIBA | TSSOP-14 | 2 | ₹278.64 · 2 in stock | View |
 | SN74LV74APWR#C471867TI · TSSOP-14 | TI | TSSOP-14 | 1,985 | ₹18.30 · 1,985 in stock | View |
