TIDatasheet (PDF)

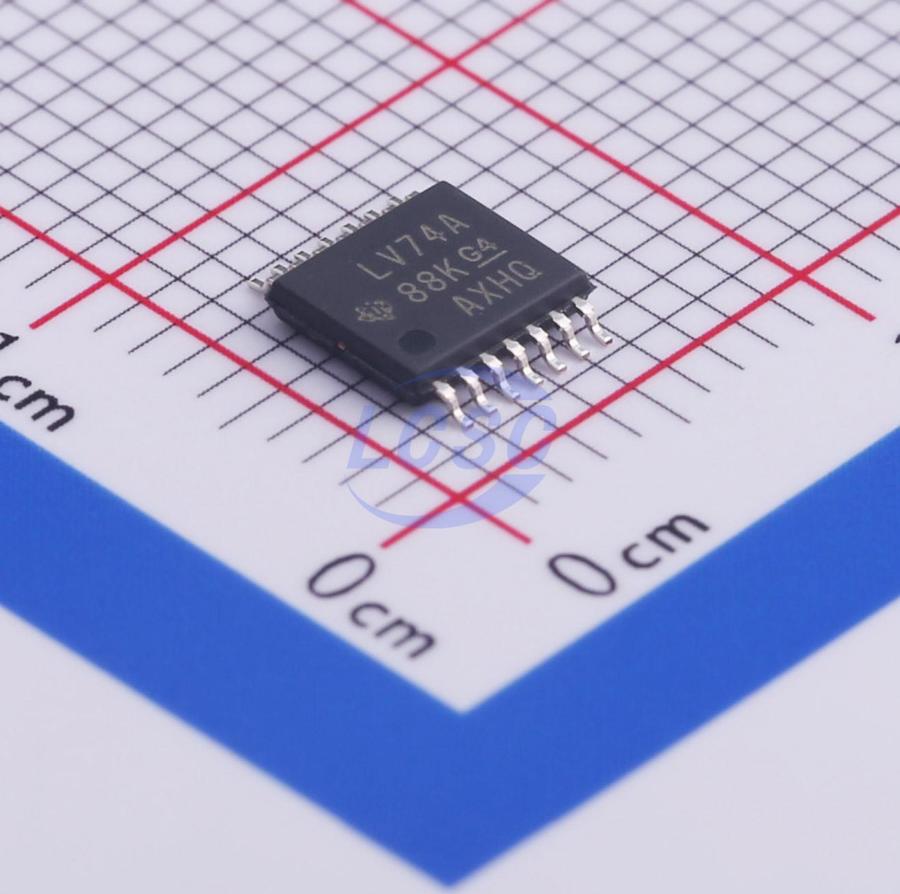

SN74LV74APWR
2V~5.5V 1 2 9.3ns@5V,50pF TSSOP-14 Flip Flops RoHS
TSSOP-14ROHS3 CompliantActive
Dual Positive-Edge-Triggered D-Type Flip-Flops
- Manufacturer
- TI
- Manufacturer part #
- SN74LV74APWR
- Store part #
- C471867
- Package / case
- TSSOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,985 in stock
#C471867
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.30 | ₹91.50 |
| 50+ | ₹17.91 | ₹895.50 |
| 150+ | ₹17.66 | ₹2,649.00 |
| 500+ | ₹17.41 | ₹8,705.00 |
5 × ₹18.30
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV74APWR
₹91.50 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74LV Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 12mA
- Current - Output Low(IOL)
- 12mA
- Setup Time
- 5ns
- Quiescent Current
- 20uA
- Hold Time
- 500ps
- Propagation Delay
- 9.3ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
These dual positive-edge-triggered D-type flip-flops are designed for 2-V to 5.5-V VCC operation.
Applications
- Programmable Logic Controller (PLC)
- DCS and PAC: Analog Input Module
- AV Receiver
- Server PSU
- STB, DVR, and Streaming Media (Withdraw)
- Server Motherboard
Key features
- 2-V to 5.5-V VCC Operation
- Maximum tpd of 8.5 ns at 5 V
- Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25℃
- Support Mixed-Mode Voltage Operation on All Ports
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 500-V Charged-Device Model (C101)
