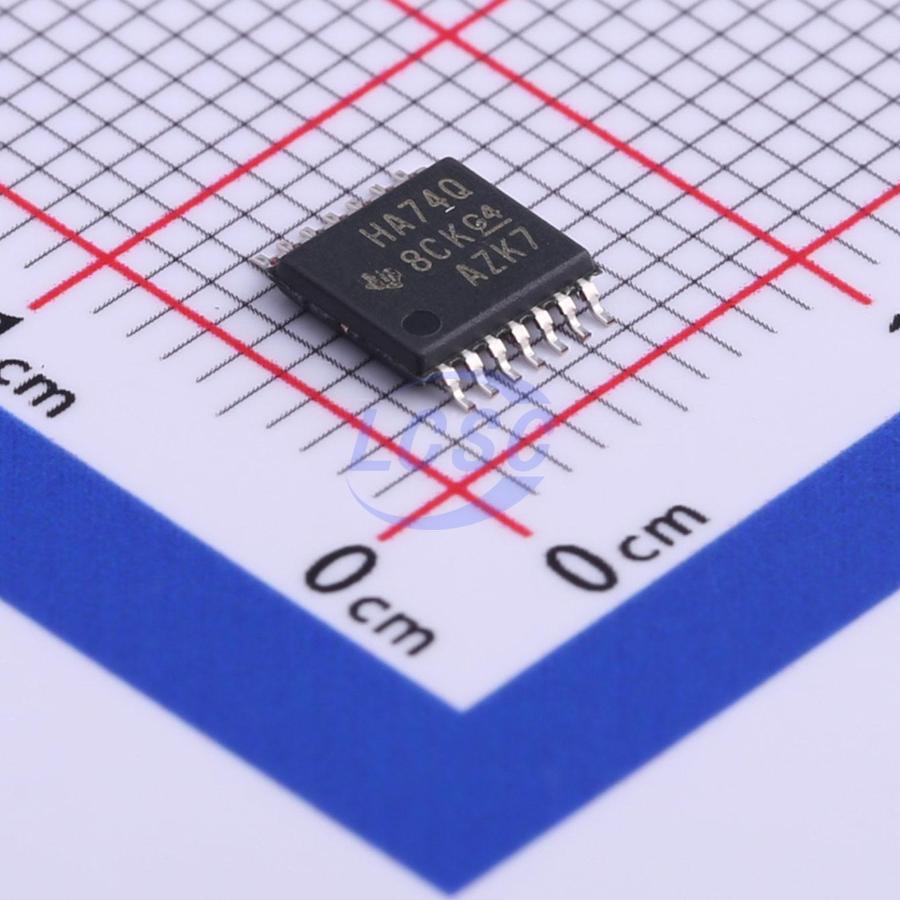

SN74AHC74QPWRQ1
2V~5.5V 1 2 9.3ns@5V,50pF TSSOP-14 Flip Flops RoHS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC74QPWRQ1
- Store part #
- C507212
- Package / case
- TSSOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,002 in stock
#C507212
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.31 | ₹68.31 |
| 10+ | ₹58.98 | ₹589.80 |
| 30+ | ₹52.47 | ₹1,574.10 |
| 100+ | ₹47.06 | ₹4,706.00 |
| 500+ | ₹45.33 | ₹22,665.00 |
| 1,000+ | ₹44.24 | ₹44,240.00 |
1 × ₹68.31
₹68.31
excl. GST
₹80.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC74QPWRQ1
₹68.31 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74AHC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
- Setup Time
- 5ns
- Quiescent Current
- 2uA
- Hold Time
- 500ps
- Propagation Delay
- 9.3ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.091 g
Overview
The SN74AHC74Q is a dual positive-edge-triggered D-type flip-flop. When the preset (PRE) or clear (CLR) input is low, the outputs are set or reset regardless of the levels of other inputs. When both PRE and CLR are inactive (high), data at the D input that meets setup time requirements is transferred to the outputs on the rising edge of the clock pulse. Clock triggering occurs at a specific voltage level and is not directly related to the rise time of the clock pulse. Changes at the D input after the hold time interval do not affect the output levels.
Key features
- Qualified for automotive applications
- Fabricated using EPIC™ (Enhanced-Performance Implanted CMOS) process
- Operating supply voltage VCC range: 2V to 5.5V
- Latch-up performance exceeds 250mA per JESD 17
- ESD protection exceeds 2000V per MIL-STD-883 Method 3015; exceeds 200V under machine model (C=200pF, R=0)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC74QPWRG4Q1#C2677705TI · TSSOP-14 | TI | TSSOP-14 | 9 | ₹157.20 · 9 in stock | View |
 | SN74AHC74PWR#C8179TI · TSSOP-14 | TI | TSSOP-14 | 1,184 | ₹48.17 · 1,184 in stock | View |
 | 74VHC74FT#C2677845TOSHIBA · TSSOP-14 | TOSHIBA | TSSOP-14 | 2 | ₹278.64 · 2 in stock | View |
 | MC74VHC74DTR2G#C464023onsemi · TSSOP-14 | onsemi | TSSOP-14 | 55 | ₹27.23 · 55 in stock | View |
 | SN74LV74APWR#C471867TI · TSSOP-14 | TI | TSSOP-14 | 1,975 | ₹18.30 · 1,975 in stock | View |
