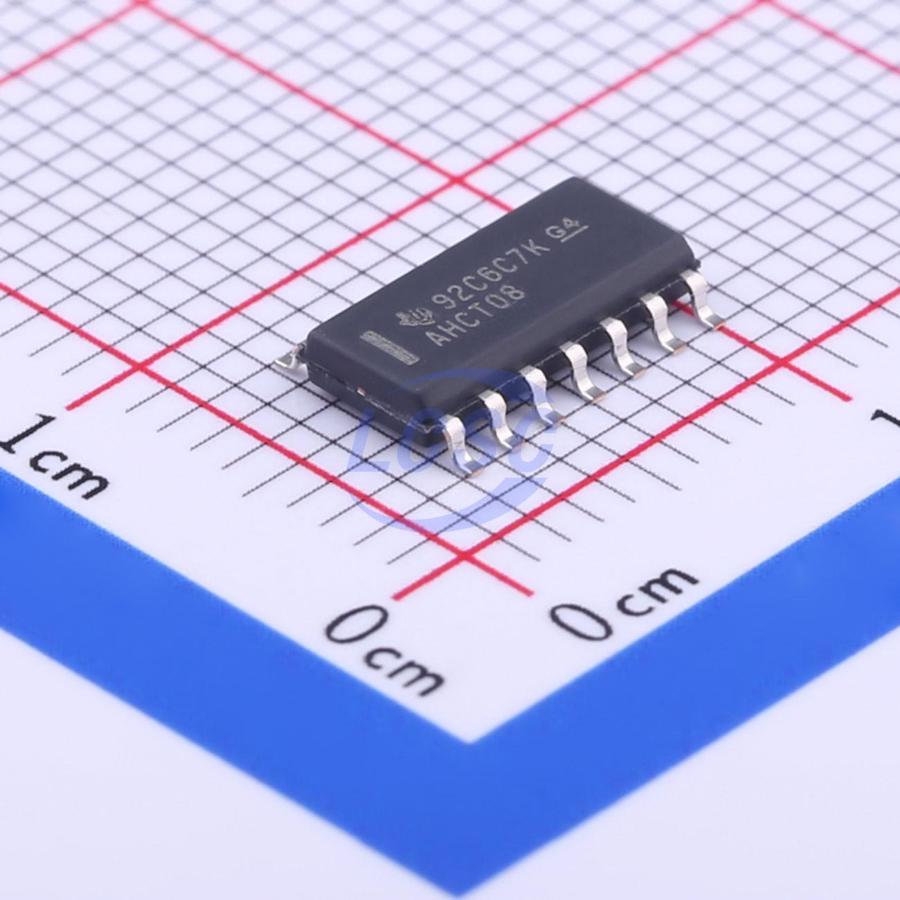

SN74AHCT08DR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT08DR
- Store part #
- C7480
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,410 in stock
#C7480
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.91 | ₹184.55 |
| 50+ | ₹29.07 | ₹1,453.50 |
| 150+ | ₹25.71 | ₹3,856.50 |
| 500+ | ₹21.51 | ₹10,755.00 |
| 2,500+ | ₹18.52 | ₹46,300.00 |
| 5,000+ | ₹17.40 | ₹87,000.00 |
5 × ₹36.91
₹184.55
excl. GST
₹217.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHCT08DR
₹184.55 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 'AHCT08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
Key features
- TTL-compatible inputs
- Latch-up performance exceeds 250mA per JESD 17
- ESD protection per JESD 22: 2000V HBM, 200V MM, 1000V CDM
- Supply voltage range: -0.5V~7V
- Input voltage range: -0.5V~7V
- Output voltage range: -0.5V~VCC+0.5V
- Input/output clamp current: ±20mA
- Continuous output current: ±25mA (output voltage within 0~VCC)
- Continuous current through VCC or GND: ±50mA
- Thermal resistance by package: D package 86°C/W, DB package 96°C/W, DGV package 127°C/W, N package 80°C/W, NS package 76°C/W, PW package 113°C/W, RGY package 47°C/W
- Storage temperature range: -65°C~150°C
- All unused inputs must be connected to VCC or GND for proper device operation
- RoHS compliant, lead-free, halogen-free (no bromine- or antimony-based flame retardants; bromine and antimony each ≤0.1% by weight in homogeneous materials)
- Moisture sensitivity level classified per JEDEC industry standard
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT08QDRQ1#C2872044TI · SOIC-14 | TI | SOIC-14 | 14 | ₹43.99 · 14 in stock | View |
| MC74VHCT08ADR2G#C463316onsemi · SOIC-14 | onsemi | SOIC-14 | 725 | ₹24.09 · 725 in stock | View | |
 | SN74AHCT08QDRG4Q1#C2862341TI · SOIC-14 | TI | SOIC-14 | 10 | ₹130.96 · 10 in stock | View |
| 74AHCT08S14-13#C842298DIODES · SO-14 | DIODES | SO-14 | 3,405 | ₹15.32 · 3,405 in stock | View | |
 | AiP74HCT08SA14.TR#C51940057Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 3,975 | ₹21.99 · 3,975 in stock | View |
