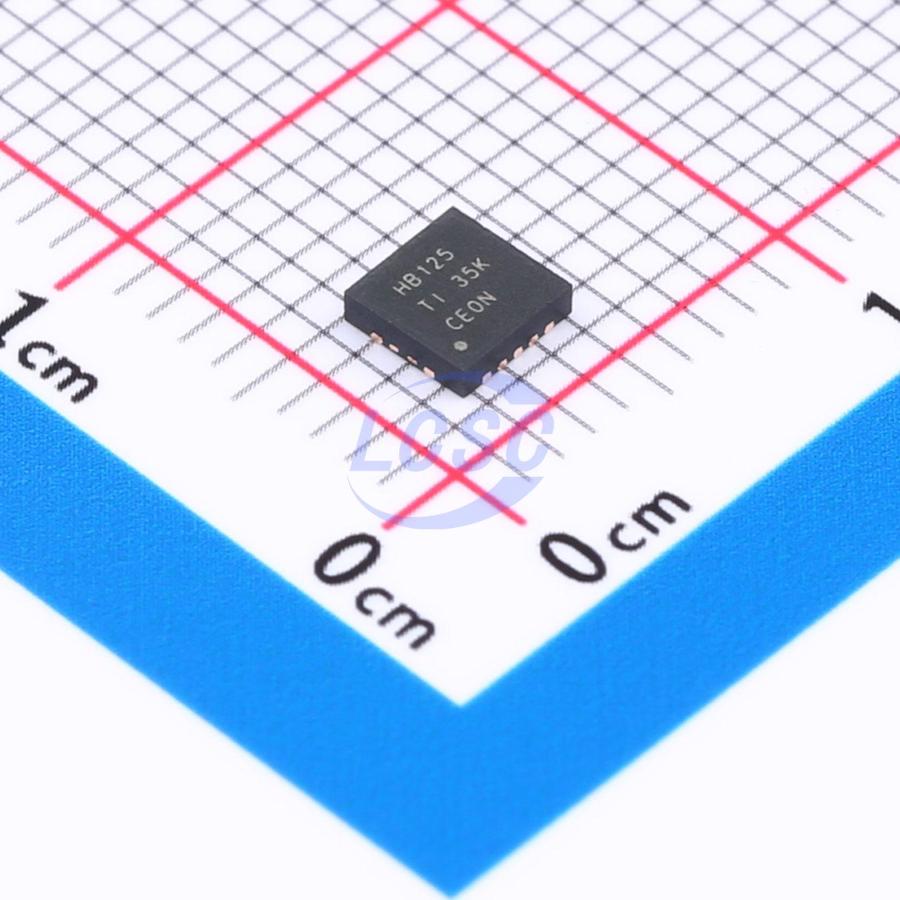

SN74AHCT125RGYR

4.5V~5.5V 1 4 7.5ns@5V,50pF VQFN-14-EP(3.5x3.5) Buffers, Drivers, Receivers, Transceivers RoHS

VQFN-14-EP(3.5x3.5)ROHS3 CompliantActive

QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS

Manufacturer: TI
Manufacturer part #: SN74AHCT125RGYR
Store part #: C2675532
Package / case: VQFN-14-EP(3.5x3.5)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,394 in stock

#C2675532

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹63.76	₹63.76
10+	₹51.61	₹516.10
30+	₹46.41	₹1,392.30
100+	₹39.90	₹3,990.00
500+	₹37.08	₹18,540.00
1,000+	₹35.35	₹35,350.00

Quantity (min 1)

1 × ₹63.76

₹63.76

excl. GST

₹75.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHCT125RGYR

₹63.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Current - Output High(IOH): 8mA
Series: 74AHCT
Voltage - Supply: 4.5V~5.5V
Output Type: Tri-State
Current - Output Low(IOL): 8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 4
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 20uA
Propagation Delay: 7.5ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

The ’AHCT125 devices are quadruple bus buffer gates featuring independent line drivers with 3 - state outputs. Each output is disabled when the associated output - enable (OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.

Applications

Bus signal buffer driver

Key features

Inputs Are TTL - Voltage Compatible
Latch - Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22:
2000 - V Human - Body Model (A114 - A)
200 - V Machine Model (A115 - A)
1000 - V Charged - Device Model (C101)
