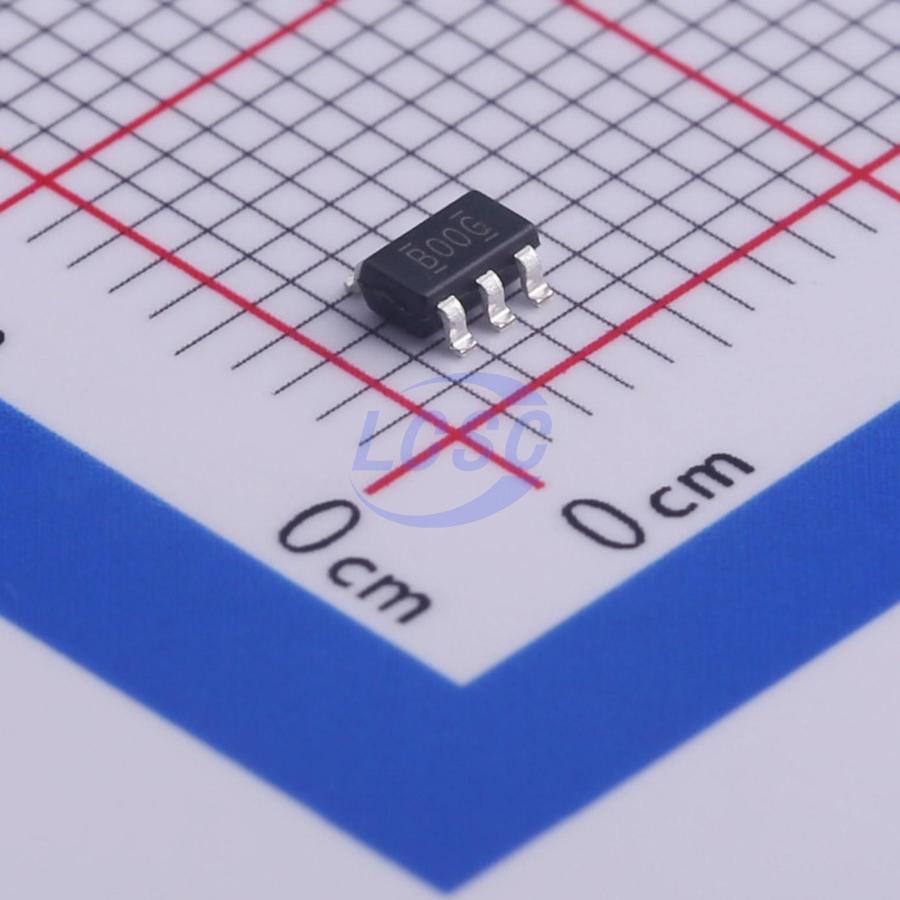

SN74AHCT1G00DBVR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,15pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single 2-Input Positive-NAND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G00DBVR
- Store part #
- C473380
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,755 in stock
#C473380
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.06 | ₹45.30 |
| 50+ | ₹7.32 | ₹366.00 |
| 150+ | ₹6.43 | ₹964.50 |
| 500+ | ₹5.69 | ₹2,845.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹5.27 | ₹31,620.00 |
5 × ₹9.06
₹45.30
excl. GST
₹53.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G00DBVR
₹45.30 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The SN74AHCT1G00 device performs the Boolean function Y = (A × B)（overline） or Y = A（overline） + B（overline） in positive logic. The device has TTL inputs that allow up translation from 3.3 V to 5 V. The inputs are high impedance when Vcc = 0 V.
Applications
- IP Phones
- Notebook PCs
- Printers
- Access Control and Security
- Solar Inverters
Key features
- Operating Range of 4.5 V to 5.5 V
- Maximum propagation delay (tpd) of 7.1 ns at 5 V
- Low Power Consumption, 10 μA Maximum ICC
- ±8 mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AiP74AHCT1G00GB235.TR#C52121066Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,560 | ₹12.00 · 2,560 in stock | View | |
 | SN74AHCT1G00DB(LX)#C41361214lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,810 | ₹6.87 · 2,810 in stock | View |
 | 74AHCT1G00GV,125#C554552Nexperia · SC-74A | Nexperia | SC-74A | 85 | ₹18.07 · 85 in stock | View |
 | SN74AHC1G00DBVR#C19829665TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,530 | ₹6.03 · 3,530 in stock | View |
 | TC7SET00F,LJ(CT#C5129835TOSHIBA · SC-74A(SOT-753) | TOSHIBA | SC-74A(SOT-753) | 3 | ₹30.23 · 3 in stock | View |
