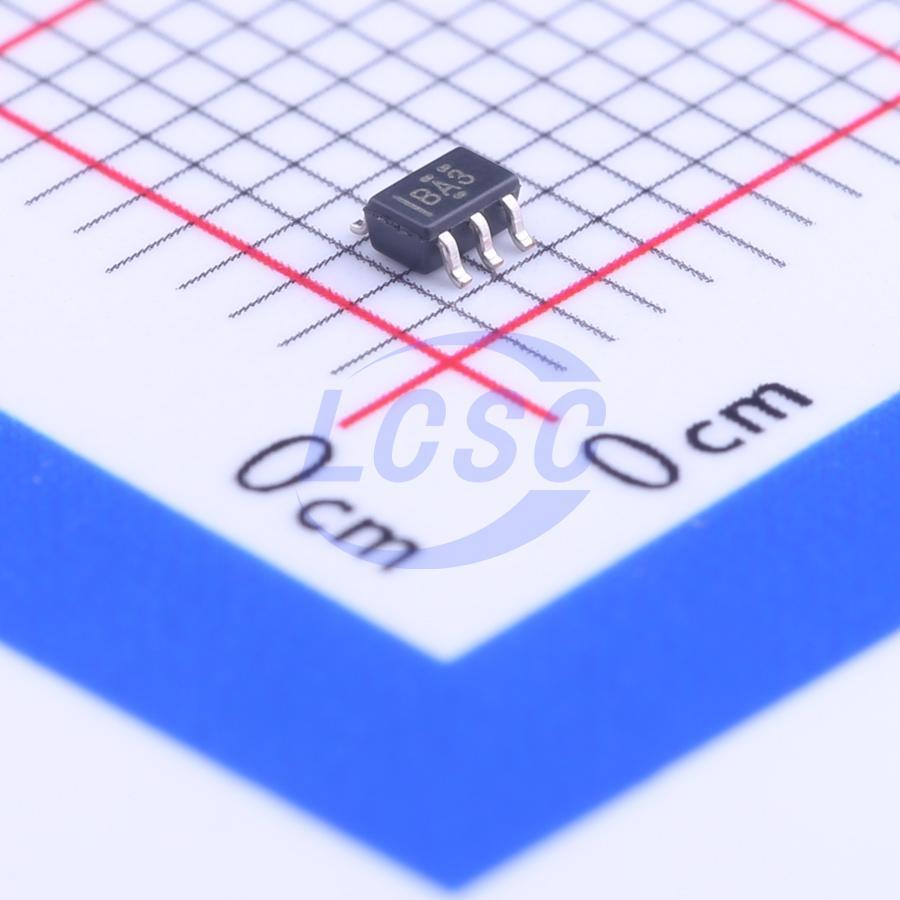

SN74AHCT1G00DCKR
TTL-compatible CMOS 4.5V~5.5V 9ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
SINGLE 2-INPUT POSITIVE-NAND GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G00DCKR
- Store part #
- C7483
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,905 in stock
#C7483
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹10.15 | ₹507.50 |
| 150+ | ₹8.90 | ₹1,335.00 |
| 500+ | ₹7.89 | ₹3,945.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.29 | ₹43,740.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G00DCKR
₹62.70 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;440mV
- Propagation Delay
- 9ns@5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V~4.5V;3.8V~3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
G00 performs the Boolean function Y = A·B or Y = A + B in posi
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tpd of 7.1 ns at 5 V
- Low Power Consumption, 10 μA Max ICC
- ±8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds ±50 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G00SE-7#C842292DIODES · SOT-353 | DIODES | SOT-353 | 2,800 | ₹9.13 · 2,800 in stock | View |
 | SN74AHCT1G00DCK3#C2878909TI · SC-70-5 | TI | SC-70-5 | 460 | ₹16.50 · 460 in stock | View |
 | SN74AHC1G00DCKR#C19829634TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,910 | ₹7.03 · 5,910 in stock | View |
| 74HCT1G00GW,125#C12501Nexperia · SOT-353 | Nexperia | SOT-353 | 3,000 | ₹12.41 · 3,000 in stock | View | |
 | 74AHCT1G00GW,125#C169792Nexperia · SOT-353 | Nexperia | SOT-353 | On request | Price on request | Quote |
