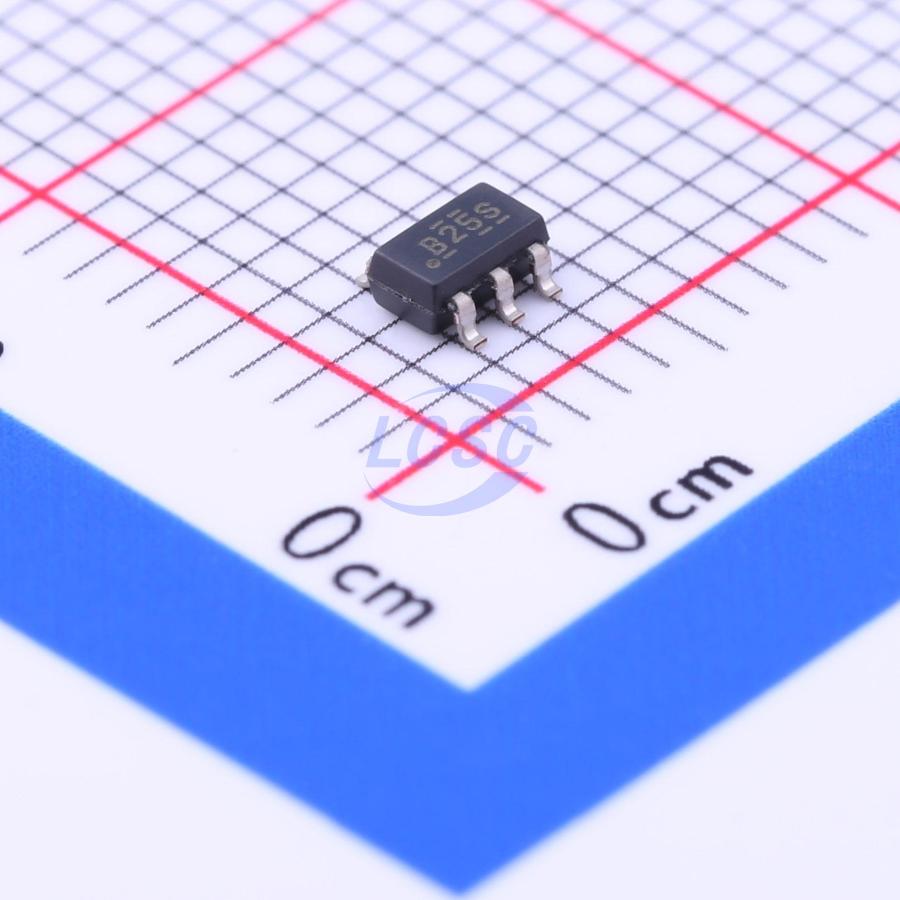

SN74AHCT1G125DBVR
4.5V~5.5V 1 1 6.5ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
PopularSOT-23-5ROHS3 CompliantActive
Single Bus Buffer Gate with 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G125DBVR
- Store part #
- C7484
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,025 in stock
#C7484
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.35 | ₹66.75 |
| 50+ | ₹10.64 | ₹532.00 |
| 150+ | ₹9.27 | ₹1,390.50 |
| 500+ | ₹8.26 | ₹4,130.00 |
| 3,000+ | ₹6.92 | ₹20,760.00 |
| 6,000+ | ₹6.51 | ₹39,060.00 |
5 × ₹13.35
₹66.75
excl. GST
₹78.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G125DBVR
₹66.75 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74AHCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 6.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The SN74AHCT1G125 is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is high. When OE is low, true data is passed from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- Bus buffering
- Line driving
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tpd of 6 ns at 5 V
- Low Power Consumption, 10- μA Max ICC
- ±8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
