lingxingic

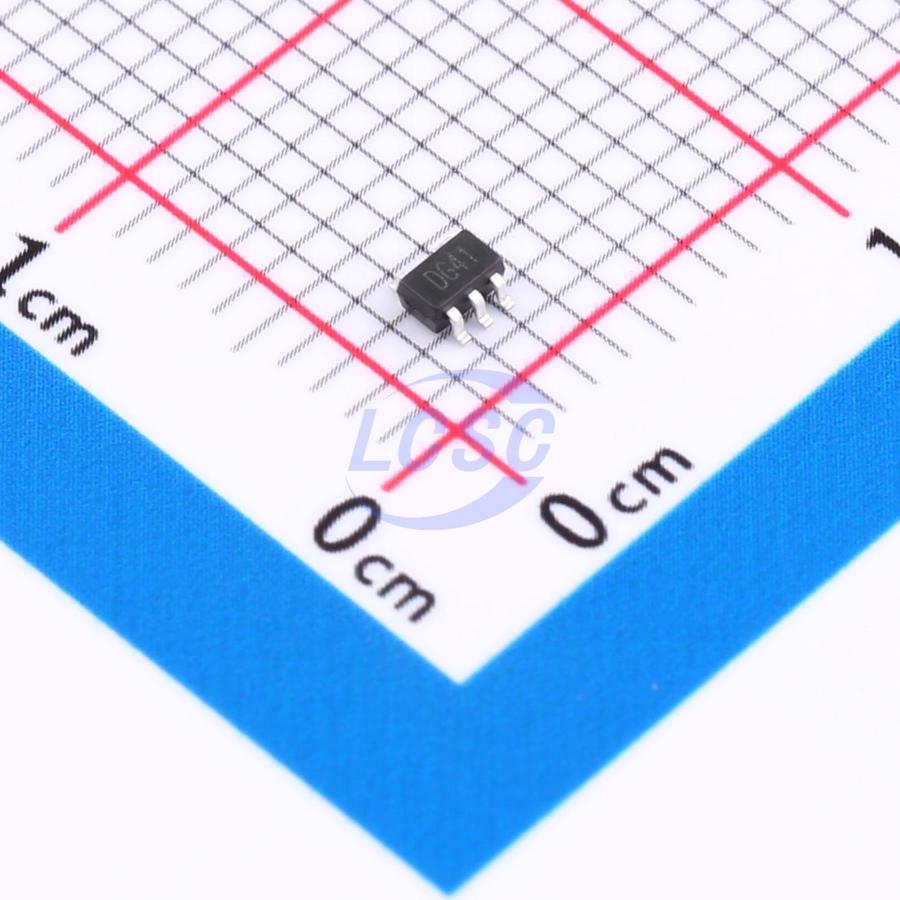

SN74AHCT1G125DC(LX)

4.5V~5.5V 1 1 4.8ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers

SOT-353RoHSActive

Manufacturer: lingxingic
Manufacturer part #: SN74AHCT1G125DC(LX)
Store part #: C49246866
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,100 in stock

#C49246866

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.73	₹67.30
100+	₹5.32	₹532.00
300+	₹4.62	₹1,386.00
3,000+	₹4.09	₹12,270.00
6,000+	₹3.66	₹21,960.00
9,000+	₹3.45	₹31,050.00

Quantity (min 10, multiples of 10)

10 × ₹6.73

₹67.30

excl. GST

₹79.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHCT1G125DC(LX)

₹67.30 for 10 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 8mA
Voltage - Supply: 4.5V~5.5V
Series: 74AHCT
Output Type: Tri-State
Current - Output Low(IOL): 8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 40uA
Propagation Delay: 4.8ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

SN74AHC1G125 and SN74AHCT1G125 are non-inverting buffer/line drivers with 3-state outputs. The output enable input (OE) controls the 3-state outputs. A high level on OE forces the outputs into a high-impedance state. The SN74AHC1G125 is compatible with CMOS input switching levels, with a supply voltage range of 2V~5.5V. The SN74AHCT1G125 is compatible with TTL input switching levels, with a supply voltage range of 4.5V~5.5V.
