TECH PUBLICDatasheet (PDF)

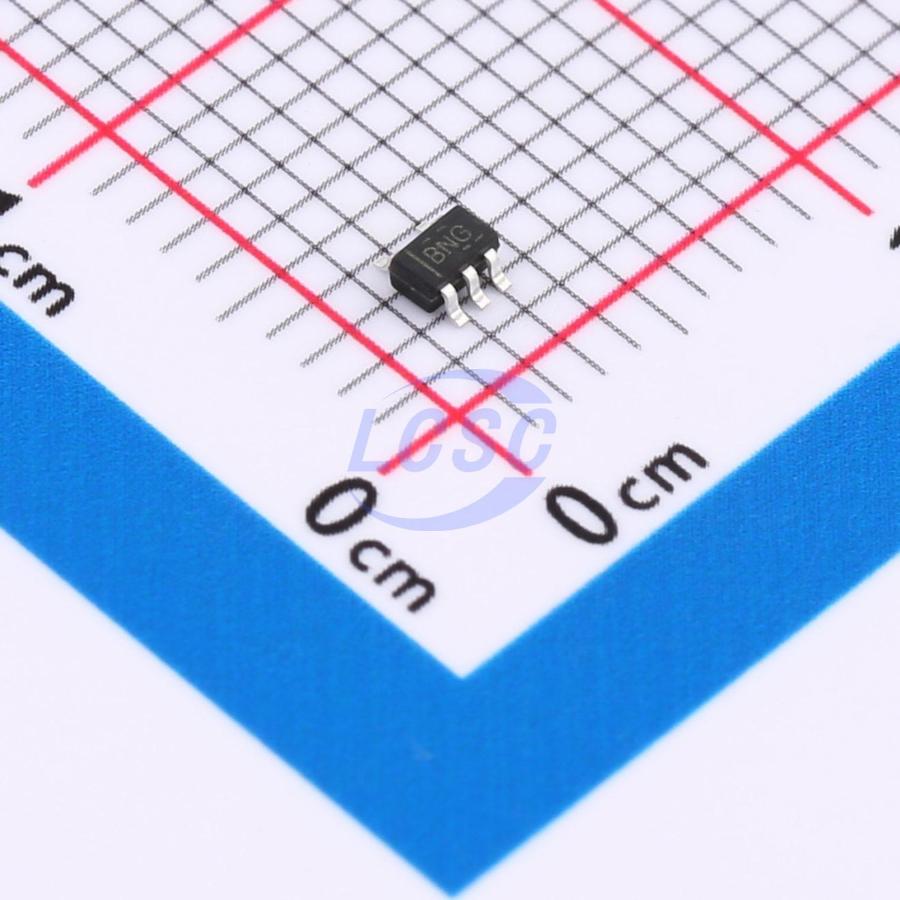

SN74AHCT1G126DCKR-TP
4.5V~5.5V 1 1 5.3ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHCT1G126DCKR-TP
- Store part #
- C42460244
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C42460244
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹5.21 | ₹521.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 1,000+ | ₹5.05 | ₹5,050.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G126DCKR-TP
₹53.40 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74AHCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 5.3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74AHCT1G126DCKR-TP is a single bus buffer gate with 3-state output controlled by enable input (OE). When OE is LOW and the output is disabled.
Applications
- Motor control: Communication induction
- Graphics card
- Advanced Driver Assistance Systems (ADAS)
- Motor Drive&Control
- DLP positive projection system
- Server motherboard
Key features
- Operation Voltage Range: 4.5~5.5V
- Low Power Dissipation: lCC = 1μA (Max.) ×25°C
- Inputs are TTL-Voltage Compatible
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
