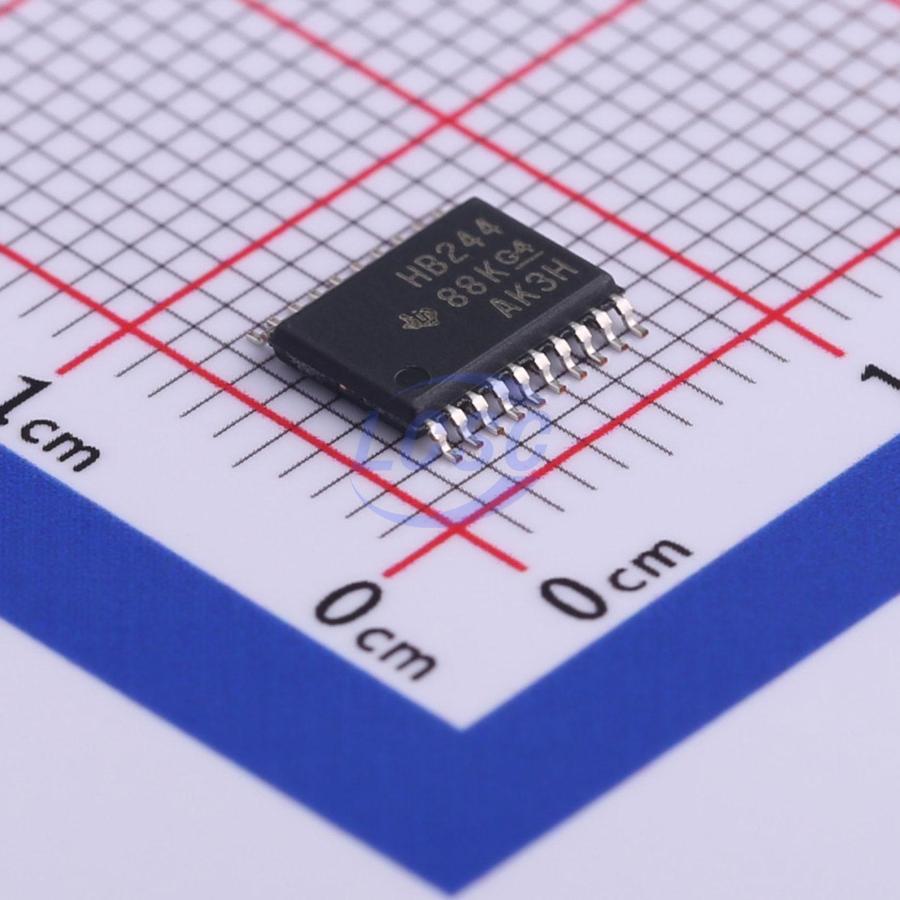

SN74AHCT244PWR

2 Element 4 Bit per Element Tri-State Output TSSOP-20

TSSOP-20ROHS3 CompliantActive

Octal Buffers/Drivers With 3-State Outputs

Manufacturer: TI
Manufacturer part #: SN74AHCT244PWR
Store part #: C484743
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,195 in stock

#C484743

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹70.19	₹70.19
10+	₹54.53	₹545.30
30+	₹47.80	₹1,434.00
100+	₹39.54	₹3,954.00
500+	₹33.25	₹16,625.00
1,000+	₹31.08	₹31,080.00

Quantity (min 1)

1 × ₹70.19

₹70.19

excl. GST

₹82.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74AHCT244PWR

₹70.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Function: Output enable;Level shifting;Edge rate controllable
Current - Output High(IOH): 8mA
Series: 74AHCT
Current - Output Low(IOL): 8mA
Number of Bits per Element: 4
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 8.4ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.124 g

Overview

These octal buffers/drivers are designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.

Applications

Network Switches
Power Infrastructures
PCs and Notebooks
Wearable Health and Fitness Devices
Tests and Measurements

Key features

Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA
Per JESD 17

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74AHCT244QPWRQ1#C2675988TI · TSSOP-20	TI	TSSOP-20	77	₹97.36 · 77 in stock	View
SN74AHCT244QPWR#C2862331TI · TSSOP-20	TI	TSSOP-20	49	₹80.94 · 49 in stock	View
SN74AHCT240PWR#C507217TI · TSSOP-20	TI	TSSOP-20	99	₹62.45 · 99 in stock	View
SN74AHCT244MPWREP#C2676493TI · TSSOP-20	TI	TSSOP-20	5	₹311.09 · 5 in stock	View
74VHCT244AMTCX#C6154onsemi · TSSOP-20	onsemi	TSSOP-20	2	₹74.97 · 2 in stock	View
