TIDatasheet (PDF)

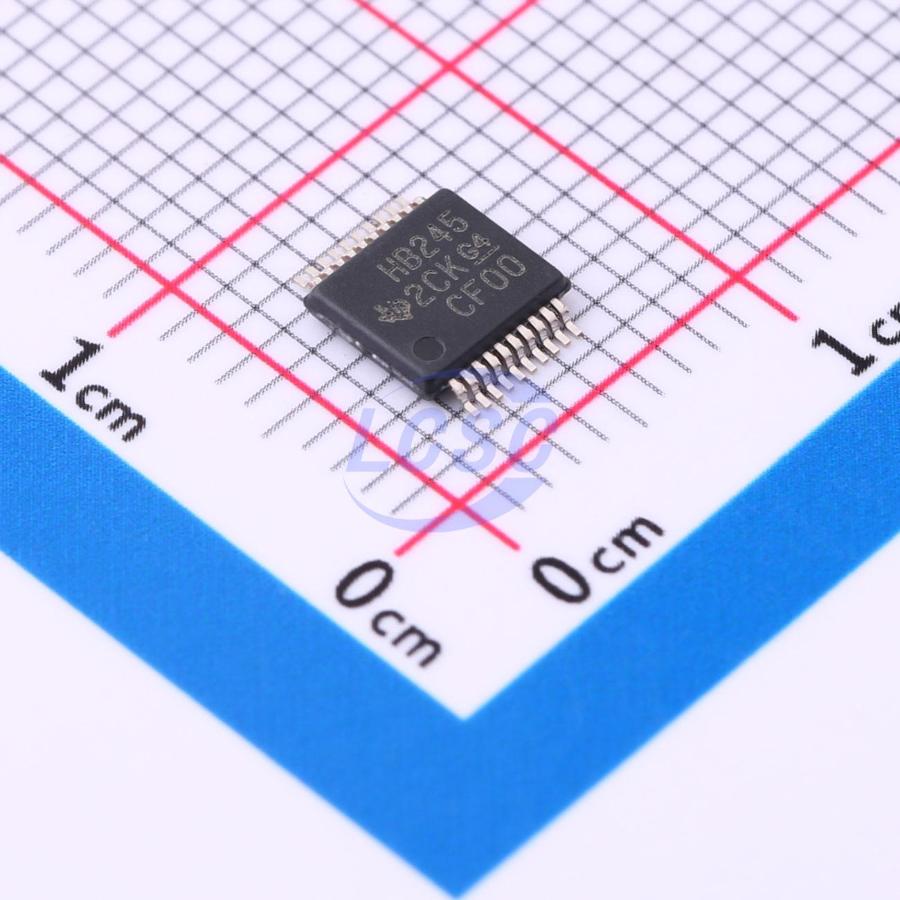

SN74AHCT245DGVR
TTL-compatible CMOS 4.5V~5.5V 8 1 11ns@5V,50pF TVSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TVSOP-20ROHS3 CompliantActive
Octal bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT245DGVR
- Store part #
- C2860030
- Package / case
- TVSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
991 in stock
#C2860030
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.84 | ₹64.84 |
| 10+ | ₹54.86 | ₹548.60 |
| 30+ | ₹47.92 | ₹1,437.60 |
| 100+ | ₹42.07 | ₹4,207.00 |
| 500+ | ₹40.11 | ₹20,055.00 |
| 1,000+ | ₹39.03 | ₹39,030.00 |
1 × ₹64.84
₹64.84
excl. GST
₹76.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT245DGVR
₹64.84 for 1 + GST
Specifications
- Input type
- TTL-compatible CMOS
- Current - Output High(IOH)
- 8mA
- Function
- Output enable;Level shifting;Edge rate controllable
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 11ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
SNx4AHCT245 octal bus transceivers are designed for asynchronous bidirectional communication between data buses. These devices operate over a voltage range of 4.5V to 5.5V.
Applications
- Servers
- PCs and laptops
- Network switches
- Wearable health and fitness devices
- Telecom infrastructure electronic point-of-sale terminals
Key features
- TTL-compatible input voltage
- Latch-up performance exceeds 250mA, compliant with JESD 17
- ESD protection performance exceeds JESD 22 requirements
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74ABT245BDGVR#C2861610TI · TVSOP-20 | TI | TVSOP-20 | 20 | ₹139.62 · 20 in stock | View |
